Purchase HM51W18165I, In-stock HM51W18165I From SeekIC.
Part Number: HM51W18165I
Description: The Hitachi HM51W18165I is a CMOS dynamic RAM organized as 1,048,576-word × ...
- Table of contents:
HM51W18165I
-
Suppliers
DataSheet
General Description
HM51W18165I General Description
The Hitachi HM51W18165I is a CMOS dynamic RAM organized as 1,048,576-word × 16-bit. It employs the most advanced CMOS technology for high performance and low power. The HM51W18165I offers Extended Data Out (EDO) Page Mode as a high speed access mode. It is packaged in 42-pin plastic SOJ.
HM51W18165I Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Voltage on any pin relative to VSS | VT | 0.5 to VCC + 0.5 (+ 4.6 V (max)) | V |
| Supply voltage relative to VSS | VCC | 0.5 to +4.6 | V |
| Short circuit output current | Iout | 50 | mA |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | -40 to +85 | |
| Storage temperature | Tstg | 55 to +125 |
HM51W18165I Features
` Single 3.3 V supply: 3.3 V ± 0.3 V
` Access time : 60 ns/70 ns (max)
` Power dissipation
- Active mode : 612 mW /540 mW (max)
- Standby mode : 7.2 mW (max)
: 0.54 mW (max) (L-version)
` EDO page mode capability
` Refresh cycles
- 1024 refresh cycles : 16 ms
: 128 ms (L-version)
` 4 variations of refresh
- RAS-only refresh
-CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
` 2CAS-byte control
` Battery backup operation (L-version)
` Temperature range: 40 to +85
` Access time : 60 ns/70 ns (max)
` Power dissipation
- Active mode : 612 mW /540 mW (max)
- Standby mode : 7.2 mW (max)
: 0.54 mW (max) (L-version)
` EDO page mode capability
` Refresh cycles
- 1024 refresh cycles : 16 ms
: 128 ms (L-version)
` 4 variations of refresh
- RAS-only refresh
-CAS-before-RAS refresh
- Hidden refresh
- Self refresh (L-version)
` 2CAS-byte control
` Battery backup operation (L-version)
` Temperature range: 40 to +85

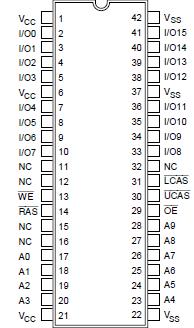

HM51W18165I Connection Diagram
