General Description
HM624100HC General Description
The HM624100HC is a 4-Mbit high speed static RAM organized 1-Mword ´ 4-bit. It has realized high speed access time by employing CMOS process (6-transistor memory cell) and high speed circuit designing technology. It is most appropriate for the application which requires high speed and high density memory, such as cache and buffer memory in system. The HM624100HC is packaged in 400-mil 32-pin SOJ for high density surface mounting.
HM624100HC Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Supply voltage relative to VSS | VCC | 0.5 to +7.0 | V |
| Voltage on any pin relative to VSS | VT | 0.5*1 to VCC+0.5*2 | V |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | 0 to +70 | |
| Storage temperature | Tstg | 55 to +125 | |
| Storage temperature under bias | Tbias | 10 to +85 |
HM624100HC Features
` Single 5.0 V supply : 5.0 V ± 10 %
` Access time 10 ns (max)
` Completely static memory
- No clock or timing strobe required
` Equal access and cycle times
` Directly TTL compatible
- All inputs and outputs
` Operating current : 140 mA (max)
` TTL standby current : 40 mA (max)
` CMOS standby ccurrent : 5 mA (max)
: 1.2 mA (max) (L-version)
` Data retension current : 0.8 mA (max) (L-version)
` Data retension voltage : 2.0 V (min) (L-version)
` Center VCC and VSS type pinout
` Access time 10 ns (max)
` Completely static memory
- No clock or timing strobe required
` Equal access and cycle times
` Directly TTL compatible
- All inputs and outputs
` Operating current : 140 mA (max)
` TTL standby current : 40 mA (max)
` CMOS standby ccurrent : 5 mA (max)
: 1.2 mA (max) (L-version)
` Data retension current : 0.8 mA (max) (L-version)
` Data retension voltage : 2.0 V (min) (L-version)
` Center VCC and VSS type pinout

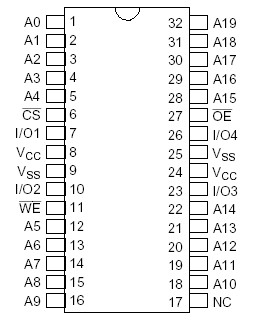

HM624100HC Connection Diagram
HM624100HC
PDF/DataSheet Download
- Datasheet: HM624100HC
- File Size: 66744 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
