General Description
HM6264B General Description
The Hitachi HM6264B is 64k-bit static RAM organized 8-kword ×8-bit. It realizes higher performance and low power consumption by 1.5 mm CMOS process technology. The device, packaged in 450 mil SOP (foot print pitch width), 600 mil plastic DIP, 300 mil plastic DIP, is available for high density mounting.
HM6264B Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Power supply voltage*1 |
VCC |
0.3 to +7.0 |
V |
| Terminal voltage*1 |
VT |
0.5*2 to VCC + 0.3*3 |
V |
| Power dissipation |
PT |
1.0 |
W |
| Operating temperature |
Topr |
0 to +70 |
°C |
| Storage temperature |
Tstg |
55 to +125 |
°C |
| Storage temperature under bias |
Tbias |
10 to +85 |
°C |
1. Relative to VSS
2. VT min: 3.0 V for pulse half-width 50 ns
3. Maximum voltage is 7.0 V
HM6264B Features
` High speed
Fast access time: 85/100 ns (max)
` Low power
Standby: 10 W (typ)
Operation: 15 mW (typ) (f = 1 MHz)
` Single 5 V supply
` Completely static memory
No clock or timing strobe required
` Equal access and cycle times
` Common data input and output
Three state output
` Directly TTL compatible
All inputs and outputs
` Battery backup operation capability
Fast access time: 85/100 ns (max)
` Low power
Standby: 10 W (typ)
Operation: 15 mW (typ) (f = 1 MHz)
` Single 5 V supply
` Completely static memory
No clock or timing strobe required
` Equal access and cycle times
` Common data input and output
Three state output
` Directly TTL compatible
All inputs and outputs
` Battery backup operation capability

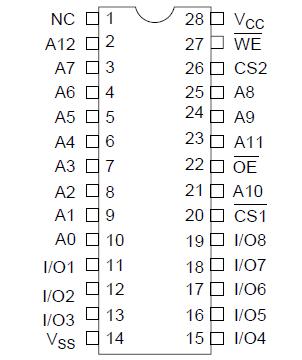

HM6264B Connection Diagram
