Purchase HM6264BI, In-stock HM6264BI From SeekIC.
Part Number: HM6264BI
Description: The Hitachi HM6264BI is 64k-bit static RAM organized 8-kword × 8-bit. It realizes higher perform...
- Table of contents:
HM6264BI
-
Suppliers
DataSheet
General Description
HM6264BI General Description
The Hitachi HM6264BI is 64k-bit static RAM organized 8-kword × 8-bit. It realizes higher performance and low power consumption by 1.5 µm CMOS process technology. The device, packaged in 450 mil SOP (foot print pitch width), 600 mil plastic DIP, is available for high density mounting.
HM6264BI Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Power supply voltage | VCC | 0.5 to +7.0 | V |
| Voltage on any pin relative to VSS | VT | 0.5* 1 to VCC + 0.3* 2 | V |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | 40 to +85 | |
| Storage temperature | Tstg | 55 to +125 | |
| Storage temperature under bias | Tbias | 40 to +85 |
2. VT min: 3.0 V for pulse half-width 50 ns
3. Maximum voltage is 7.0 V
HM6264BI Features
• Single 5 V supply: 5 V ± 10%
• Access time: 100/120 ns (max)
• Power dissipation:
Standby: 10 µW (typ)
Operation: 15 mW (typ) (f = 1 MHz)
• Completely static memory
No clock or timing strobe required
• Equal access and cycle times
• Common data input and output
Three state output
• Directly TTL compatible
All inputs and outputs
• Battery backup operation capability
• Operating temperature range: 40˚C to +85˚C
• Access time: 100/120 ns (max)
• Power dissipation:
Standby: 10 µW (typ)
Operation: 15 mW (typ) (f = 1 MHz)
• Completely static memory
No clock or timing strobe required
• Equal access and cycle times
• Common data input and output
Three state output
• Directly TTL compatible
All inputs and outputs
• Battery backup operation capability
• Operating temperature range: 40˚C to +85˚C

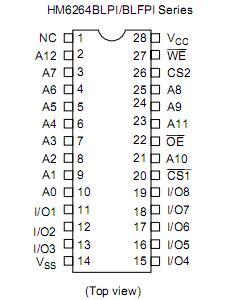

HM6264BI Connection Diagram
