Purchase HM628511H, In-stock HM628511H From SeekIC.
MFG:HM D/C:09+
Part Number: HM628511H
MFG: HM
D/C: 09+
Description: · Single 5.0 V supply : 5.0 V ± 10 %· Access time 10 /12 /15 ns (max)· Completely static memo...
- Table of contents:
HM628511H
-
Suppliers
DataSheet
General Description
HM628511H General Description
· Single 5.0 V supply : 5.0 V ± 10 %
· Access time 10 /12 /15 ns (max)
· Completely static memory
- No clock or timing strobe required
· Equal access and cycle times
· Directly TTL compatible
- All inputs and outputs
· Operating current : 180 / 160 / 140 mA (max)
· TTL standby current : 70 / 60 / 50 mA (max)
· CMOS standby current : 5 mA (max)
: 1.2 mA (max) (L-version)
· Data retension current: 0.8 mA (max) (L-version)
· Data retension voltage: 2 V (min) (L-version)
· Center VCC and VSS type pinout
HM628511H Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Supply voltage relative to VSS | VCC | 0.5 to + 7.0 | V |
| Voltage on any pin relative to VSS | VT | 0.5*1 to VCC + 0.5*2 | V |
| Power dissipation | PT | 1.0 | W |
| Operating temperature | Topr | 0 to +70 | |
| Storage temperature | Tstg | 55 to +125 | |
| Storage temperature under bias | Tbias | 10 to +85 |
HM628511H Features
The HM628511H Series is a 4-Mbit high speed static RAM organized 512-k word ´ 8-bit. It has realized high speed access time by employing CMOS process (4-transistor + 2-poly resistor memory cell)and high speed circuit designing technology. It is most appropriate for the application which requires high speed, high density memory and wide bit width configuration, such as cache and buffer memory in system. It is packaged in 400-mil 36-pin plastic SOJ.

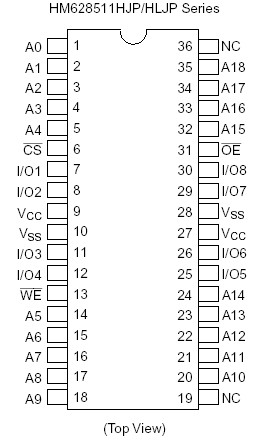

HM628511H Connection Diagram
HM628511H Series
PDF/DataSheet Download
- Datasheet: HM628511H Series
- File Size: 82466 KB
- Manufacturer: hitachi
- Click here to Download
