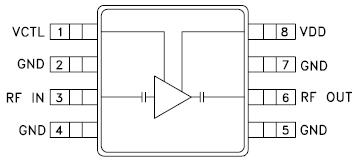

Features: Gain: 21 dBNoise Figure: 2.5 dBGain Adjustment: 30 dBSingle Positive Supply: +3VNo External ComponentsUltra Small Package: MSOP8GApplicationLNA for Spread Spectrum Applications:• BLUETOOTH• HomeRF• 802.11 WLAN• 2.5 GHz RadiosPinoutSpecifications ...
HMC287MS8: Features: Gain: 21 dBNoise Figure: 2.5 dBGain Adjustment: 30 dBSingle Positive Supply: +3VNo External ComponentsUltra Small Package: MSOP8GApplicationLNA for Spread Spectrum Applications:• BLU...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Drain Bias Voltage (Vdd) | +7.0 Vdc |
Control Voltage Range (Vctl) | -0.2V to Vdd |
RF Input Power (RFin)(Vdd = +3.0 Vdc) | 0 dBm |
Channel Temperature | 150 °C |
Continuous Pdiss (T = 85 °C) (derate 5.62 mW/°C above 85 °C) |
0.365 W |
Thermal Resistance (channel to ground paddle) |
178 °C/W |
Storage Temperature | -65 to +150 °C |
Operating Temperature | -40 to +85 °C |
The HMC287MS8 is a low cost Low Noise Amplifi er (LNA) offering 21 dB of gain and a 2.5 dB noise fi gure from a single positive +3V supply that requires only 9 mA. The HMC287MS8G can be used as a variable gain LNA, offering 30 dB of gain control, which is controlled with a 0 to 3V analog voltage. The typical output 1dB compression point is +3 dBm and OIP3 is +7 dBm when in the maximum gain state. The compact LNA design utilizes onchip matching for repeatable gain and noise fi gure performance and eliminates the need for external matching circuitry to reduce the overall size of the LNA function.
