HMC310MS8G

Features: ·Tx Gain: 15 dB, Rx Gain: 13 dB·Tx 1 dB Compression Point: 5 dBm·Rx Noise Figure: 3 dB @ 2.4 GHz·Single Positive Supply: +3V·No External Matching RequiredApplicationTransmit & Receive Switch for 2.4 GHz Applications:• Bluetooth• HomeRF• WLAN RadiosPinoutSpecificatio...

product image

HMC310MS8G Picture
SeekIC No. : 004363850 Detail

HMC310MS8G: Features: ·Tx Gain: 15 dB, Rx Gain: 13 dB·Tx 1 dB Compression Point: 5 dBm·Rx Noise Figure: 3 dB @ 2.4 GHz·Single Positive Supply: +3V·No External Matching RequiredApplicationTransmit & Receive ...

floor Price/Ceiling Price

Part Number:
HMC310MS8G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Tx Gain: 15 dB, Rx Gain: 13 dB
·Tx 1 dB Compression Point: 5 dBm
·Rx Noise Figure: 3 dB @ 2.4 GHz
·Single Positive Supply: +3V
·No External Matching Required



Application

Transmit & Receive Switch for 2.4 GHz Applications:
• Bluetooth
• HomeRF
• WLAN Radios



Pinout

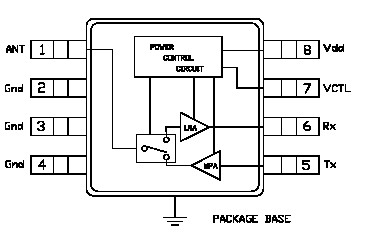

  Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +7.0 Vdc
Control Voltage Range (Vctl) -0.2 to Vdd
RF Input Power (Vdd = +3.0 Vdc) 0 dBm
Channel Temperature 150
Continuous Pdiss (T = 85 )
(derate 5 mW/ above 85)
0.325 W
Thermal Resistance
(channel to ground paddle)
200 /W
Storage Temperature -65 to +150
Operating Temperature -40 to +85



Description

The HMC310MS8G is a multifunction RFIC that incorporates a power amplifi er (PA) and low noise amplifi er (LNA) with a transmit/receive switch. The HMC310MS8G RFIC offers 15 dB gain and +5 dBm P1dB in the transmit mode and 13 dB of gain with an overall noise fi gure of 3 dB when in receive mode. Transmit and receive performance levels have been selected to meet the BLUETOOTH Class 2 & 3 requirements when used in conjunction with 2.4 GHz ASICs such as National Semiconductor's LMX3162. This low current and low cost transceiver requires no external circuitry to operate the amplifi er power down features, and is available in the industry standard MSOP8G package, which is 0.118" x 0.190" (3.0mm x 4.9mm).
