HMC315

Features:

·Saturated Output Power: +17 dBm
·Output IP3: +33 dBm
·Gain: 15 dB
·Single Supply: +5V to +7V
·Ultra Small Package: SOT26


Application

The HMC315 is ideal for:
• Fiber Optic OC-48 Systems
• Microwave Test Instrumentation
• Broadband Mobile Radio Platforms

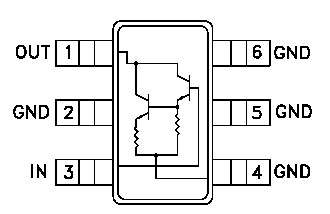

Pinout




Specifications

Collector Bias Voltage (Vcc)	+7.5 Vdc
RF Input Power (RFin)(Vcc = +5.0 Vdc)	+20 dBm
Junction Temperature	150
Continuous Pdiss (T = 60 ) (derate 4.14 mW/ above 60 )	0.373 W
Thermal Resistance (junction to lead)	242 /W
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC315 is an ultra broadband GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC amplifi er that operates from a single positive supply. The surface mount SOT26 amplifi er can be used as a broadband gain stage, or used with external matching for optimized narrow band applications. The Darlington confi guration results in reduced sensitivity to normal process variations and provides a good 50-ohm input/output port match. The HMC315 amplifier provides 15 dB of gain and +17 dBm of saturated power while operating from a single positive +7V supply.
