Product Details

Description



Features:

LNA with 18 dB Gain Control
+3V Operation
Low Noise Figure: 2.5 dB
No External Components
Ultra Small 8 Lead MSOP:
14.8mm2 x 1mm High


Application

The HMC318MS8G is ideal for:
• UNII
• HiperLAN

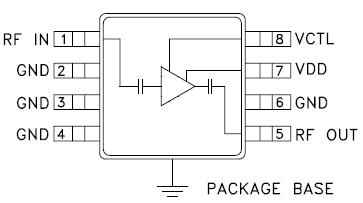

Pinout

Connection Diagram


Specifications

Drain Bias Voltage (Vdd) +7.0 Vdc
Control Voltage Range (Vctl) -0.2V to Vdd
RF Input Power (RFin)(Vdd = +3.0 Vdc) 0 dBm
Channel Temperature 150 °C
Continuous Pdiss (T = 85 °C)
(derate 9.76 mW/°C above 85 °C)		 0.634 W
Thermal Resistance
(channel to ground paddle)		 102 °C/W
Storage Temperature -65 to +150 °C
Operating Temperature -40 to +85 °C



Description

The HMC318MS8G is a surface mount low cost C-band variable gain low noise amplifi er (VGLNA) that serves the full UNII and HiperLAN bands. The HMC318MS8G operates using a single positive supply that can be set between +3V or +5V. When a control voltage of 0V to +3V is applied, the gain of the amplifi er will decrease while maintaining excellent return loss performance. A maximum gain of 9 dB is achieved when VCTL is set to 0V and a minimum gain of -9 dB is achieved when Vctl is set to +3V.
