Product Details

Description

Features:

Broadband Performance: DC - 6.0 GHz
High Isolation: 42 dB@ 6 GHz
Low Insertion Loss: 1.6 dB@ 6 GHz
MSOP8G SMT Package

Application

This switch is suitable for usage in DC - 6.0 GHz
50-Ohm or 75-Ohm systems:
• Broadband
• Fiber Optics
• Switched Filter Banks
• Wireless below 6.0 GHz

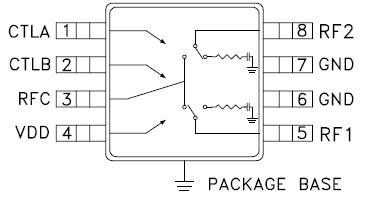

Pinout

Connection Diagram

Specifications

Bias Voltage Range (Vdd)	-7.0 Vdc
Control Voltage Range (A & B)	+0.5V to Vdd + 1.0 Vdc
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C
Maximum Input Power	+28 dBm

Description

The HMC336MS8G is a broadband non-refl ective GaAs MESFET SPDT switch in a low cost 8 lead MSOP8G surface mount package with an exposed ground paddle. Covering DC to 6.0 GHz, this HMC336MS8G switch offers high isolation and low insertion loss. The switch operates using a positive control voltage of 0/+5 Volts, and requires a fi xed bias of +5V. This switch is suitable for usage in 50-Ohm or 75-Ohm systems.
