Product Details

Description

Features:

·Ultra Low SSB Phase Noise: -145 dBc/Hz
·Wide Bandwidth
·Output Power: 7 dBm
·Single DC Supply: +5V
·8 Lead Hermetic SMT Package

Application

Prescaler for DC to X Band PLL Applications:
• Point-to-Point / Multi-Point Radios
• VSAT Radios
• Fiber Optic
• Test Equipment
• Space & Military

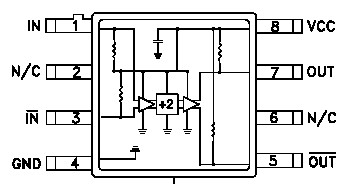

Pinout

Connection Diagram

Specifications

RF Input (Vcc= +5V)	+13dBm
Vcc	+5.5V
Channel Temperature (Tc)	135
Continuous Pdiss (T = 85 ) (derate 11.9 mW/ above 85 )	593 mW
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85

Description

The HMC364G8 is a low noise Divide-by-2 Static Divider with InGaP GaAs HBT technology in an 8 lead glass/metal surface mount (hermetic) package. This HMC364G8 operates from DC (with a square wave input) to 13 GHz input frequency with a single +5.0V DC supply. The low additive SSB phase noise of -145 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance.
