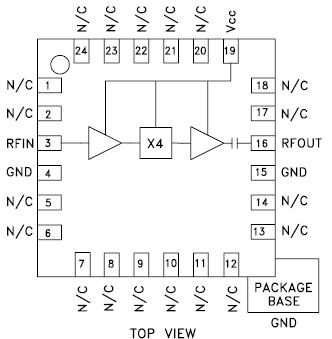

Features: Output Power: 0 dBmSub-Harmonic Suppression: >22 dBcSSB Phase Noise: -140 dBc/HzSingle Supply: 5V@ 55 mA16 mm2 Leadless SMT PackageApplicationActive Multiplier for Ku Band Applications:• Pt to Pt & VSAT Radios• Fiber Optic• MilitaryPinoutSpecifications ...
HMC370LP4: Features: Output Power: 0 dBmSub-Harmonic Suppression: >22 dBcSSB Phase Noise: -140 dBc/HzSingle Supply: 5V@ 55 mA16 mm2 Leadless SMT PackageApplicationActive Multiplier for Ku Band Applications:...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
DescriptionThe HMC304MS8(E) is a passive high IP3 mixer in 8 lead plastic surface mount Mini Small...
RF Input (Vcc= +5V) | +20 bBm |
Vcc | +6.0 Vdc |
Storage Temperature | -65 to +150 °C |
Operating Temperature | -40 to +85 °C |
The HMC370LP4 is an active miniature x4 frequency multiplier utilizing InGaP GaAs HBT technology in a 4 mm x 4 mm leadless surface mount package. Power output is 0 dBm typical from a 5.0V supply voltage and varies little vs. input power, temperature and supply voltage. Suppression of undesired fundamental and sub-harmonics is >22 dBc typical with respect to output signal level. The low additive SSB phase noise of -140 dBc/Hz at 100 kHz offset helps the user maintain good system noise performance. The HMC370LP4 is ideal for use in LO multiplier chains allowing reduced parts count vs. traditional approaches.
