HMC377QS16G

Features:

·+15 dBm Input IP3, +29 dBm Output IP3
·Low LO Drive: -5 dBm LO
·Conversion Gain: 14 dB
·Noise Figure: 11 dB
·Positive Supply: +5V @ 135 mA


Application

The HMC377QS16G is ideal for:
• GSM & CDMA Infrastructure
• GPRS & EDGE Infrastructure
• Wireless Data/CDPD

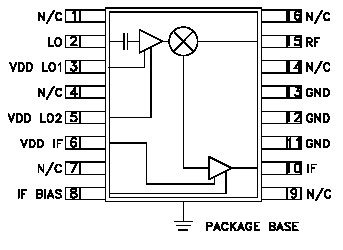

Pinout




Specifications

RF / IF Input (Vdd= +5V)	+13 dBm
LO Drive (Vdd= +5V)	+15 dBm
Vdd (LO or IF)	+7 Vdc
Channel Temperature	150
Channel Temperature	0.881 W
Thermal Resistance (RTH) (junction to lead)	57.3 /W
Storage Temperature	-65 to +150
Operating Temperature	-40 to +85 deg



Description

The HMC377QS16G is a linear downconverter receiver IC suitiable for cellular infrastructure applications from 0.8 - 1.0 GHz. An integrated mixer coupled with a high dynamic range IF amplifi er achieves an input intercept point (IP3) of +15 dBm, and an input P1dB of +3.5 dBm. The converter provides a gain of 13.5 dB and only 11 dB typical single side band noise fi gure. The IC operates from a positive +5V rail consuming 135 mA of current while requiring only -5 dBm LO drive. The design of HMC377QS16G requires no external baluns. The mixer supports IF frequencies between 50 MHz and 250 MHz.
