HMC516LC5

Series: -
Test Frequency: -
Packaging: Cut Tape (CT)Alternate Packaging
Gain: 20.5dB
RF Type: General Purpose
Voltage - Supply: 2.5 V ~ 3.5 V
Noise Figure: 2dB
Current - Supply: 88mA
Manufacturer: Hittite Microwave Corporation
P1dB: 14dBm
Frequency: 9GHz ~ 18GHz

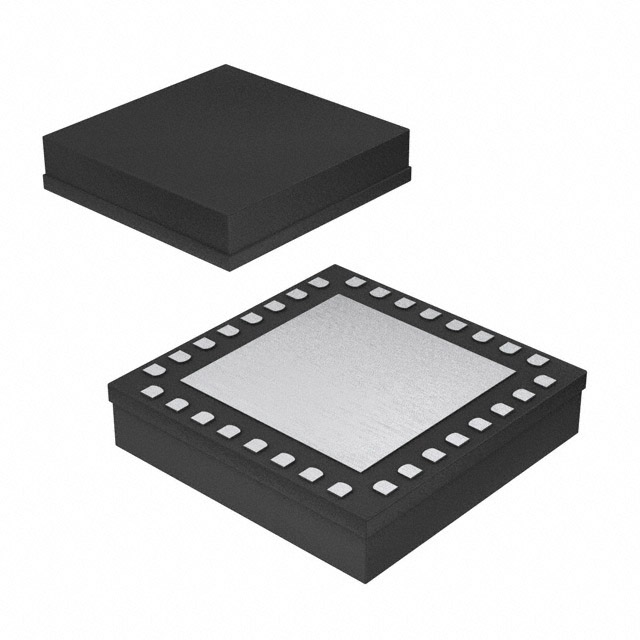

Package / Case: 32-TFQFN Exposed Pad


Features:

·Noise Figure: 2.0 dB
·Gain: 20 dB
·OIP3: +25 dBm
·Single Supply: +3V @ 65 mA
·50 Ohm Matched Input/Output
·RoHS Compliant 5 X 5 mm Package



Application

The HMC516LC5 is ideal for use as a LNA or driver amplifi er for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios & VSAT
• Test Equipment and Sensors
• Military



Specifications

Drain Bias Voltage (Vdd1, Vdd2,Vdd3) Vdd (Vdc) Idd (mA)	+4 Vdc
RF Input Power (RFin)(Vdd = +3.0Vdc)	+10 dBm
Channel Temperature	175 °C
Continuous Pdiss (T= 85 °C) (derate 14 mW/°C above 85 °C)	1.25 W
Thermal Resistance (channel to die bottom)	71 °C/W
Storage Temperature	-65 to +150 °C
Operating Temperature	-40 to +85 °C
ESD Sensitivity (HBM)	Class 1A

Description

The HMC516LC5 is a high dynamic range GaAs PHEMT MMIC Low Noise Amplifi er (LNA) housed in a leadless "Pb free" RoHS compliant SMT package. The HMC516LC5 provides 20 dB of small signal gain, 2.0 dB of noise fi gure and has an output IP3 of +25 dBm. The P1dB output power of +13 dBm enables the LNA to also function as a LO driver for balanced, I/Q or image reject mixers. The HMC516LC5 allows the use of surface mount manufacturing techniques.
