HMP8173

Features: • (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation• BT.601 and Square Pixel Operation• Digital Input Formats- 8-bit, 16-bit 4:2:2 YCbCr- 8-bit BT.656• Analog Output Formats- Y/C + Two Composite- RGB + Composite- YUV + Composite• Flexible Video Timing Con...

product image

HMP8173 Picture
See larger image
SeekIC No. : 004364769 Detail

HMP8173: Features: • (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation• BT.601 and Square Pixel Operation• Digital Input Formats- 8-bit, 16-bit 4:2:2 YCbCr- 8-bit BT.656• Analog Ou...

HMP8173 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HMP8173
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• (M) NTSC and (B, D, G, H, I, M, N, NC) PAL Operation
• BT.601 and Square Pixel Operation
• Digital Input Formats
- 8-bit, 16-bit 4:2:2 YCbCr
- 8-bit BT.656
• Analog Output Formats
- Y/C + Two Composite
- RGB + Composite
- YUV + Composite
• Flexible Video Timing Control
- Timing Master or Slave
- Selectable Polarity on Each Control Signal
- Programmable Blank Output Timing
• "Sliced" VBI Data Support
- Closed Captioning
- Widescreen Signalling (WSS)
- BT.653 System B and C Teletext
- NABTS (North American Broadcast Teletext)
- WST (World System Teletext)
• Four 2x Oversampling, 10-Bit DACs
• Fast I2C Interface


Application

• DVD Players
• Video CD Players
• Digital VCRs
• Multimedia PCs


Pinout

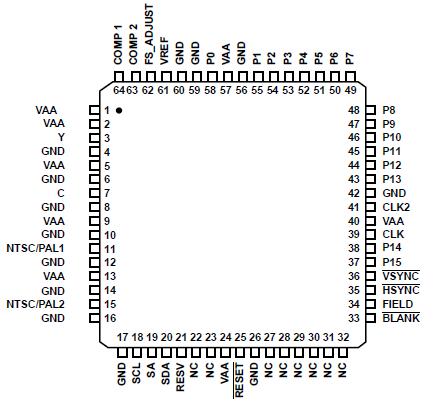

Connection Diagram


Specifications

Supply Voltage (VAA to GND) . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0V
All Signal Pins . . . . . . . . . . . . . . . . . . . (GND 0.5V) to (VAA + 0.5V)
ESD Classification . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .Class 2


Description

The HMP8170, HMP8171, HMP8172, and HMP8173 NTSC and PAL encoders are designed for use in systems requiring the generation of high-quality NTSC and PAL video.

About the HMP8170, HMP8171, HMP8172, and HMP8173, YCbCr digital video data drive the P0-P15 inputs. The Y data is optionally lowpass filtered to 6MHz and drives the Y analog output. Cb and Cr are each lowpass filtered to 1.3MHz, quadrature modulated, and added together. The result drives the C analog output. The digital Y and C data are also added together and drive the two composite analog outputs.

The HMP8170, HMP8171, HMP8172, and HMP8173 can drive doubly-terminated (37.5W) lines, and run at a 2x oversampling rate to simplify the analog output filter requirements.
