HN62W4018M

Features: • Low voltage operation: 3.3 V ± 0.3 V• High speed Normal access time: 120 ns/150 ns (max) Page access time: 40 ns/50 ns (max)• Low power consumption Active : 360 W (max) Standby : 0.72 mW (max) Power down mode : 36 mW (max)• 8-word page access mode• Three-s...

product image

HN62W4018M Picture
See larger image
SeekIC No. : 004365112 Detail

HN62W4018M: Features: • Low voltage operation: 3.3 V ± 0.3 V• High speed Normal access time: 120 ns/150 ns (max) Page access time: 40 ns/50 ns (max)• Low power consumption Active : 360 W (max)...

HN62W4018M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HN62W4018M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low voltage operation: 3.3 V ± 0.3 V
• High speed
   Normal access time: 120 ns/150 ns (max)
   Page access time: 40 ns/50 ns (max)
• Low power consumption
   Active : 360 W (max)
   Standby : 0.72 mW (max)
   Power down mode : 36 mW (max)
• 8-word page access mode
• Three-state data output for or-tying
• LVTTL compatible


Pinout

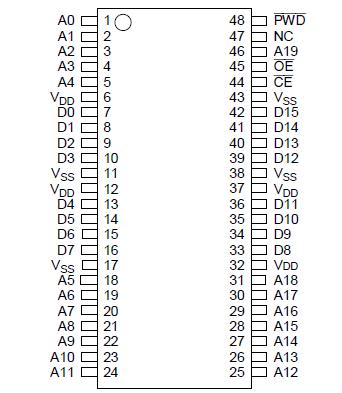

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Note
Supply voltage
VDD
0.3 to +5.5
V
1
All input and output voltage
Vin, Vout
0.3 to VDD + 0.3
V
1
Operating temperatue range
Topr
0 to +70
°C

Storage temperature range
Tstg
55 to +125
°C

Temperature under bias
Tbias
20 to + 85
°C

Notes:
1. With respect to VSS



Description

The HN62W4018M is a 16-Mbit CMOS mask-programmable ROM organized as 1,048,576-word by 16- bit. Realizing low power consumption, this memory is allowed for battery operation. And a high speed access of 120/150 ns (max) is the most suitable to the system using a high speed micro-computer by 16- bit.
