Purchase HSM2694, In-stock HSM2694 From SeekIC.
MFG:renesas Package Cooled:SOT-23 D/C:2004
- Table of contents:
HSM2694
-
Suppliers
DataSheet
General Description
HSM2694 Maximum Ratings
|
Item |
Symbol |
Value |
Unit |
| Reverse voltage |
VR |
35 |
V |
| Power dissipation |
PD* |
150 |
mW |
| Junction temperature |
Tj |
125 |
|
| Storage temperature |
Tstg |
45 to +125 |
|
| Operation temperature |
Topr |
20 to +60 |
HSM2694 Features
· Low forward resistance. (rf = 0.9 max)
· Low capacitance. (C = 1.2pFmax)
· MPAK package is suitable for high density surface mounting and high speed assembly.
· Low capacitance. (C = 1.2pFmax)
· MPAK package is suitable for high density surface mounting and high speed assembly.

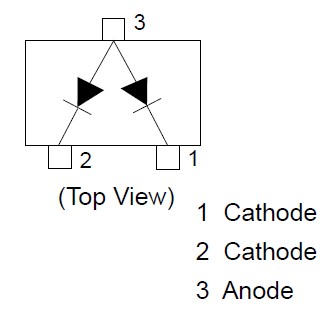

HSM2694 Connection Diagram
HSM2694
