General Description
HT75XX General Description
The HT75XX series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 8V. CMOS technology ensures low voltage drop and low quiescent current.
Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
HT75XX Maximum Ratings
Supply Voltage.............................-0.3V to 26V
Power Consumption............................ 250mW
Storage Temperature................-50 to 125
Operating Temperature ..................0 to 70
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings " may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.x
Power Consumption............................ 250mW
Storage Temperature................-50 to 125
Operating Temperature ..................0 to 70
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings " may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.x
HT75XX Features
` Low power consumption
` Low voltage drop
` Low temperature coefficient
` High input voltage (up to 24V)
` High output current : 100mA (Pd 250mW)
` TO-92 and SOT-89 package
` Low voltage drop
` Low temperature coefficient
` High input voltage (up to 24V)
` High output current : 100mA (Pd 250mW)
` TO-92 and SOT-89 package
HT75XX Typical Application
· Battery-powered equipment
· Communication equipment
· Audio/Video equipment
· Communication equipment
· Audio/Video equipment

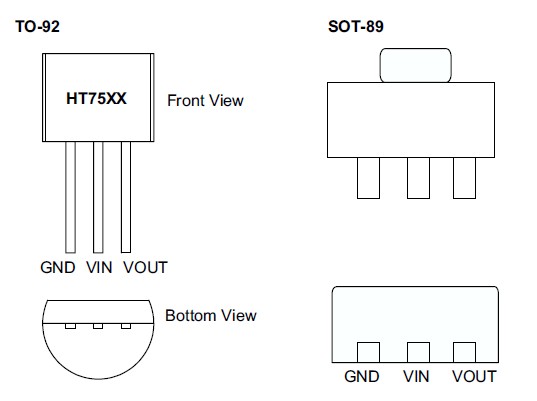

HT75XX Connection Diagram
HT75XX
PDF/DataSheet Download
- Datasheet: HT75XX
- File Size: 103040 KB
- Manufacturer: HOLTEK [Holtek Semiconductor Inc]
- Click here to Download
