Part Number: HY51VS18163HG
Description: The HY51V(S)18163HG/HGL is the new generation dynamic RAM organized 1,048,576 words x 16bit. HY51V(S)1...
- Table of contents:
HY51VS18163HG
-
Suppliers
DataSheet
General Description
HY51VS18163HG General Description
The HY51V(S)18163HG/HGL is the new generation dynamic RAM organized 1,048,576 words x 16bit. HY51V(S)18163HG/HGL has realized higher density, higher performance and various functions by utilizing advanced CMOS process technology. The HY51V(S)18163HG/HGL offers Extended Data Out Page- Mode as a high speed access mode. Multiplexed address inputs permit the HY51V(S)18163HG/HGL to be packaged in standard 400mil 42pin SOJ and 44(50) pin TSOP-II. The package size provides high system bit densities and is compatible with widely available automated testing and insertion equipment.
HY51VS18163HG Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Ambient Temperature |
TA |
0 ~ 70 |
|
| Storage Temperature |
TSG |
-55 ~ 125 |
|
| Voltage on Any Pin relative to VSS |
VT |
-0.5 ~ Vcc + 0.5 (Max 4.6V) |
V |
| Voltage on VDD relative to VSS |
VCC |
-0.5 ~ 4.6 |
V |
| Short Circuit Output Current |
IOUT |
50 |
mA |
| Power Dissipation |
PT |
1 |
W |
HY51VS18163HG Features
• Extended Data Out Mode capability
• Read-modify-write capability
• Multi-bit parallel test capability
• TTL(3.3V) compatible inputs and outputs
• /RAS only, CAS-before-/RAS, Hidden and self refresh(L-version) capability
• JEDEC standard pinout
• 42pin plastic SOJ / 44(50)pin TSOP-II (400mil)
• Single power supply of 3.3V +/- 0.3V
• Battery back up operation(L-version)
• 2CAS byte control
• Read-modify-write capability
• Multi-bit parallel test capability
• TTL(3.3V) compatible inputs and outputs
• /RAS only, CAS-before-/RAS, Hidden and self refresh(L-version) capability
• JEDEC standard pinout
• 42pin plastic SOJ / 44(50)pin TSOP-II (400mil)
• Single power supply of 3.3V +/- 0.3V
• Battery back up operation(L-version)
• 2CAS byte control

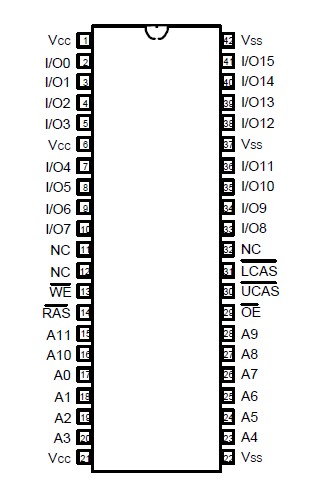

HY51VS18163HG Connection Diagram
