Purchase HZM6.2ZWA, In-stock HZM6.2ZWA From SeekIC.
MFG:HITACHI Package Cooled:SOT-23 D/C:05+
- Table of contents:
HZM6.2ZWA
-
Suppliers
DataSheet
General Description
HZM6.2ZWA Maximum Ratings
|
Item |
Symbol |
Value |
Unit |
| Power dissipation |
Pd *1 |
200 |
mW |
| Junction temperature |
Tj |
150 |
|
| Storage temperature |
Tstg |
-55 to +150 |
Note 1. Two device total, See Fig.2.
HZM6.2ZWA Features
· HZM6.2ZWA has two devices, and can absorb external + and -surge.
· Low capacitance (C=8.5pF max) and can protect ESD of signal line.
· MPAK Package is suitable for high density surface mounting and high speed assembly.
· Low capacitance (C=8.5pF max) and can protect ESD of signal line.
· MPAK Package is suitable for high density surface mounting and high speed assembly.

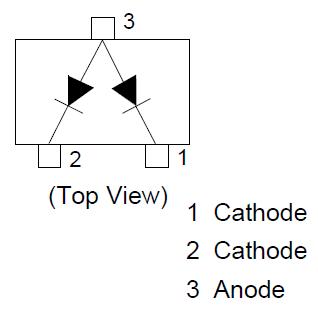

HZM6.2ZWA Connection Diagram
HZM6.2ZWA
PDF/DataSheet Download
- Datasheet: HZM6.2ZWA
- File Size: 31081 KB
- Manufacturer: HITACHI [Hitachi Semiconductor]
- Click here to Download
