General Description
IA8044 General Description
The IA8044/IA8344 is a "plug-and-play" drop-in replacement for the original IC. InnovASIC roduces replacement ICs using its MILESTM, or Managed IC Lifetime Extension System, cloning echnology. This technology produces replacement ICs far more complex than "emulation" while nsuring they are compatible with the original IC. MILESTM captures the design of a clone so it can e produced even as silicon technology advances. MILESTM also verifies the clone against the riginal IC so that even the "undocumented features" are duplicated. This data sheet documents all ecessary engineering information about the IA8044/IA8344 including functional and I/O escriptions, electrical characteristics, and applicable timing.
IA8044 Maximum Ratings
Ambient temperature under bias.............................-40°C to +85°C
Storage temperature.............................................- 40°C to 150°C
Power Supply (VDD)............................................-0.3 to +6VDC
Voltage on any pin to VSS...............-0.3 to (VDD +0.3) - See Note 1
Power dissipation...................................................... ............2W
Storage temperature.............................................- 40°C to 150°C
Power Supply (VDD)............................................-0.3 to +6VDC
Voltage on any pin to VSS...............-0.3 to (VDD +0.3) - See Note 1
Power dissipation...................................................... ............2W
IA8044 Features
· Form, Fit, and Function Compatible with the Intelâ 8044/8344
· Packaging options available: 40 Pin Plastic Dual In-Line Package (PDIP),
Pin Plastic Leaded Chip Carrier (PLCC)
· 8-Bit Control Unit
· 8-Bit Arithmetic-Logic Unit with 16-Bit multiplication and division
· 12 MHz clock
· Four 8-Bit Input / Output ports
· Two 16-Bit Timer/Counters
· Serial Interface Unit with SDLC/HDLC compatibility
· 2.4 Mbps maximum serial data rate
· Two Level Priority Interrupt System
· 5 Interrupt Sources
· Internal Clock prescaler and Phase generator
· 192 Bytes of Read/Write Data Memory Space
· 64kB External Program Memory Space
· 64kB External Data Memory Space
· 4kB Internal ROM (IA8044 only)
· Packaging options available: 40 Pin Plastic Dual In-Line Package (PDIP),
Pin Plastic Leaded Chip Carrier (PLCC)
· 8-Bit Control Unit
· 8-Bit Arithmetic-Logic Unit with 16-Bit multiplication and division
· 12 MHz clock
· Four 8-Bit Input / Output ports
· Two 16-Bit Timer/Counters
· Serial Interface Unit with SDLC/HDLC compatibility
· 2.4 Mbps maximum serial data rate
· Two Level Priority Interrupt System
· 5 Interrupt Sources
· Internal Clock prescaler and Phase generator
· 192 Bytes of Read/Write Data Memory Space
· 64kB External Program Memory Space
· 64kB External Data Memory Space
· 4kB Internal ROM (IA8044 only)

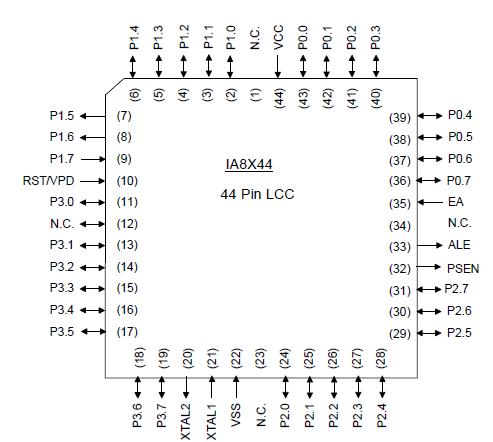

IA8044 Connection Diagram
