Part Number: IC41LV16100AS
Description: The ICSI IC41C16100A(S) and IC41LV16100A(S) are 1,048,576 x 16-bit high-performance CMOS Dynamic Rando...
- Table of contents:
IC41LV16100AS
-
Suppliers
DataSheet
General Description
IC41LV16100AS General Description
The ICSI IC41C16100A(S) and IC41LV16100A(S) are 1,048,576 x 16-bit high-performance CMOS Dynamic Random Access Memories. These devices offer an accelerated cycle access called EDO Page Mode. EDO Page Mode allows 1,024 random accesses within a single row with access cycle time as short as 20 ns per 16-bit word. The Byte Write control, of upper and lower byte, makes the 16100 series ideal for use in 16-, 32-bit wide data bus systems.
These features make the IC41C16100A(S) and IC41LV16100A (S) ideally suited for high-bandwidth graphics, digital signal processing, high-performance computing systems, and peripheral applications.
The IC41C16100A(S) and IC41LV16100A(S) are packaged in a 42-pin 400mil SOJ and 400mil 50- (44-) pin TSOP-2.
IC41LV16100AS Maximum Ratings
| Symbol | Parameters |
Rating |
Unit | |
| VT | Voltage on Any Pin Relative to GND |
5V 3.3V |
1.0 to +7.0 0.5 to +4.6 |
V |
| VCC | Supply Voltage |
5V 3.3V |
1.0 to +7.0 0.5 to +4.6 |
V |
| IOUT | Output Current |
50 |
mA | |
| PD | Power Dissipation |
1 |
W | |
| TA | Commercial Operation Temperature |
0 to +70 |
||
| TSTG | Storage Temperature |
55 to +125 |
IC41LV16100AS Features
• Extended Data-Out (EDO) Page Mode access cycle
• TTL compatible inputs and outputs; tristate I/O
• Refresh Interval: 1,024 cycles /16 ms
• Refresh Mode:RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply:5V ± 10% (IC41C16100A(S)) 3.3V ± 10% (IC41LV16100A(S))
• Byte Write and Byte Read operation via two CAS
• Self Refresh 1024 cycles for S version
• TTL compatible inputs and outputs; tristate I/O
• Refresh Interval: 1,024 cycles /16 ms
• Refresh Mode:RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply:5V ± 10% (IC41C16100A(S)) 3.3V ± 10% (IC41LV16100A(S))
• Byte Write and Byte Read operation via two CAS
• Self Refresh 1024 cycles for S version

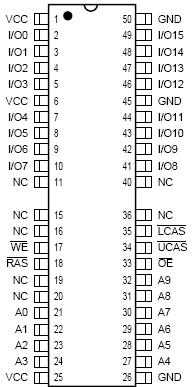

IC41LV16100AS Connection Diagram
