Product Details

Description



Features:

• Access time: 45, 70, 100 ns
• Low active power: 70 mW
• Low standby power
- 60 W CMOS standby
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 3.3V power supply

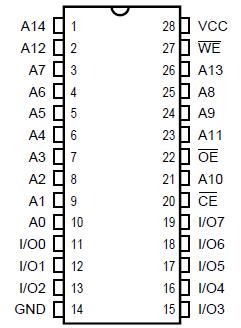

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VTERM
 Terminal Voltage with Respect to GND
0.5 to +4.6
V
TBIAS
 Temperature Under Bias
55 to +125
°C
TSTG
 Storage Temperature
65 to +150
°C
PT
 Power Dissipation
0.5
W
IOUT
 DC Output Current (LOW)
20
mA



Description

The ICSI IC62LV256 is a low power, 32, 768-word by 8-bit static RAM. It is fabricated using ICSI's high-performance CMOS double-metal technology.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation is reduced to 20 W (typical) with CMOS input levels.

Easy memory expansion is provided by using an active LOW Chip Enable (CE) input and an active LOW Output Enable (OE) input. The active LOW Write Enable (WE) controls both writing and reading of the memory.
The IC62LV256 is pin compatible with other 32K x 8 SRAMs in 300mil DIP and SOJ, 330mil SOP, and 8*13.4mm TSOP-1 packages.
