Purchase ICX274AQF, In-stock ICX274AQF From SeekIC.
Part Number: ICX274AQF
Description: The ICX274AQF is a diagonal 8.923mm (Type 1/1.8) interline CCD solid-state image sensor with a square ...
- Table of contents:
ICX274AQF
-
Suppliers
DataSheet
General Description
ICX274AQF General Description
The ICX274AQF is a diagonal 8.923mm (Type 1/1.8) interline CCD solid-state image sensor with a square pixel array and 2.01M effective pixels. Progressive scan allows all pixels' signals to be output independently within approximately 1/15 second, and output is also possible using various addition and pulse elimination methods. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still images without a mechanical shutter. High resolution and high color reproductivity are achieved through the use of R, G, B primary color mosaic filters as the color filters. Further, high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology.
This chip is suitable for applications such as electronic still cameras, PC input cameras, etc.
ICX274AQF Maximum Ratings
|
Item |
Ratings | Unit | Remarks | |
| Against SUB | VDD, VOUT, RG SUB | 40 to +12 | V | |
| V2, V3 SUB ( = A to C) | 50 to +15 | V | ||
| V1, V4, VL SUB | 50 to +0.3 | V | ||
| H1, H2, GND SUB ( = A, B) | 40 to +0.3 | V | ||
| CSUB SUB | 25 to | V | ||
| Against GND | VDD, VOUT, RG, CSUB GND | 0.3 to +22 | V | |
| V1, V2, V3, V4 GND ( = A to C) | 10 to +18 | V | ||
| H1, H2 GND ( = A, B) | 10 to +6.5 | V | ||
| Against VL | V2, V3 VL ( = A to C) | 0.3 to +28 | V | |
| V1, V4, H1, H2, GND VL ( = A, B) | 0.3 to +15 | V | ||
| Between input clock pins |
Voltage difference between vertical clock input pins | to +15 | V | *2 |
| H1 H2 ( = A, B) | 6.5 to +6.5 | V | ||
| H1, H2 V4 ( = A, B) | 10 to +16 | V | ||
| Storage temperature | 30 to +80 | °C | ||
| Guaranteed temperature of performance | 10 to +60 | °C | ||
| Operating temperature | 10 to +75 | °C | ||
+16V (Max.) is guaranteed during power-on or power-off.
ICX274AQF Features
• High horizontal and vertical resolution
• Supports the following modes
Progressive scan mode (with/without mechanical shutter)
2/8-line readout mode
2/4-line readout mode
2-line addition mode
Center scan modes (1), (2) and (3)
AF modes (1) and (2)
• Square pixel
• Horizontal drive frequency: 28.6364MHz (typ.), 36.0MHz (max.)
• Reset gate bias are not adjusted
• R, G, B primary color mosaic filters on chip
• High sensitivity, low dark current
• Continuous variable-speed shutter function
• Excellent anti-blooming characteristics
• 20-pin high-precision plastic package
• Supports the following modes
Progressive scan mode (with/without mechanical shutter)
2/8-line readout mode
2/4-line readout mode
2-line addition mode
Center scan modes (1), (2) and (3)
AF modes (1) and (2)
• Square pixel
• Horizontal drive frequency: 28.6364MHz (typ.), 36.0MHz (max.)
• Reset gate bias are not adjusted
• R, G, B primary color mosaic filters on chip
• High sensitivity, low dark current
• Continuous variable-speed shutter function
• Excellent anti-blooming characteristics
• 20-pin high-precision plastic package

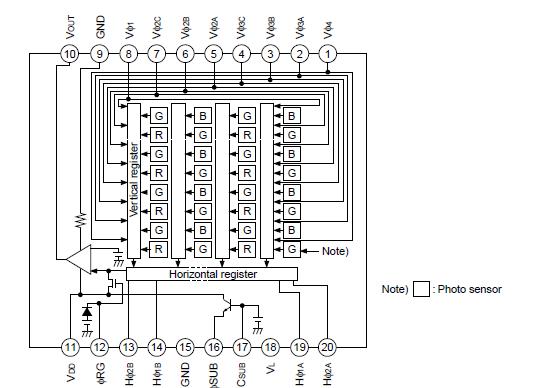

ICX274AQF Connection Diagram
ICX274AQF
PDF/DataSheet Download
- Datasheet: ICX274AQF
- File Size: 954036 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
