Description: The IDT octal buffer/line drivers are built using an advanced dual metal CMOS technology. The IDT54/74FCT240/A/C, IDT54...
- Table of contents:
IDT54
-
Suppliers
DataSheet
General Description
IDT54 General Description
The IDT octal buffer/line drivers are built using an advanced dual metal CMOS technology. The IDT54/74FCT240/A/C, IDT54/74FCT241/A/C and IDT54/74FCT244/A/C are designed to be employed as memory and address drivers, clock drivers and bus-oriented transmitter/receivers which provide improved board density.
The IDT54/74FCT540/A/C and IDT54/74FCT541/A/C are similar in function to the IDT54/74FCT240/A/C and IDT54/ 74FCT244/A/C, respectively, except that the inputs and outputs are on opposite sides of the package. This pinout arrangement makes these devices especially useful as output ports for microprocessors and as backplane drivers, allowing ease of layout and greater board density.
IDT54 Maximum Ratings
|
Symbol |
Rating |
Commercial |
Military |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7.0 |
0.5 to +7.0 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC |
0.5 to VCC |
V |
|
TA |
Operating Temperature |
0 to +70 |
55 to +125 |
°C |
|
TBIAS</div |
IDT54 Features
• IDT54/74FCT240/241/244/540/541 equivalent to FASTTM speed and drive
• IDT54/74FCT240A/241A/244A/540A/541A 25% faster than FAST
• IDT54/74FCT240C/241C/244C/540C/541C up to 55% faster than FAST
•IOL = 64mA (commercial) and 48mA (military)
• CMOS power levels (1mW typ. static)
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B
• Meets or exceeds JEDEC Standard 18 specifications
• IDT54/74FCT240A/241A/244A/540A/541A 25% faster than FAST
• IDT54/74FCT240C/241C/244C/540C/541C up to 55% faster than FAST
•IOL = 64mA (commercial) and 48mA (military)
• CMOS power levels (1mW typ. static)
• Product available in Radiation Tolerant and Radiation Enhanced versions
• Military product compliant to MIL-STD-883, Class B
• Meets or exceeds JEDEC Standard 18 specifications

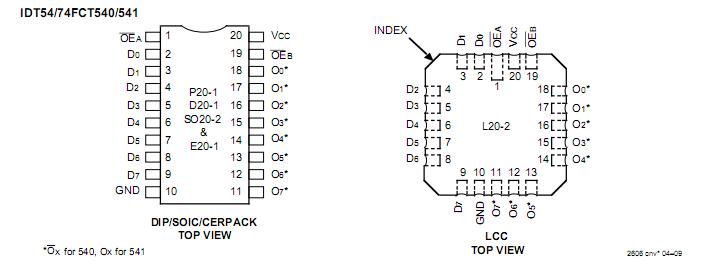

IDT54 Connection Diagram
IDT542240ATD
