IDT54CT162646

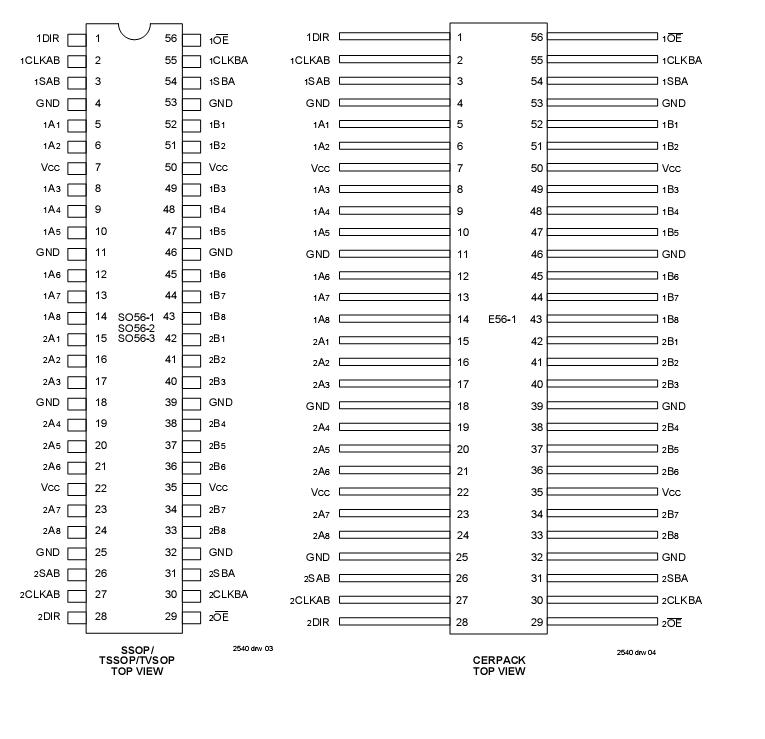

The IDT54/74FCT16646T/AT/CT/ET and IDT54/74FCT162646T/AT/CT/ET 16-bit registered transceivers are built using advanced dual metal CMOS technology. These high-speed, low-power devices are organized as two inde- pendent 8-bit bus transceivers with 3-state D-type registers. The control circuitry is organized for multiplexed transmissionof data between A bus and B bus either directly or from the internal storage registers. Each 8-bit transceiver/register fea- tures direction control (xDIR), over-riding Output Enable con- trol (xOE ) and Select lines (xSAB and xSBA) to select either real-time data or stored data. Separate clock inputs are provided for A and B port registers. Data on the A or B data bus, or both, can be stored in the internal registers by the LOW-to-HIGH transitions at the appropriate clock pins. Flow- through organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin. The IDT54/74FCT16646T/AT/CT/ET are ideally suited for driving high-capacitance loads and low-impedance backplanes. The output buffers are designed with power offdisable capability to allow "live insertion" of boards when used as backplane drivers.
The IDT54/74FCT162646T/AT/CT/ET have balanced output drive with current limiting resistors. This offers low ground bounce, minimal undershoot, and controlled output fall timesreducing the need for external series terminating resistors. The IDT54/74FCT162646T/AT/CT/ET are plug-in replacements for the IDT54/74FCT16646T/AT/CT/ET and 54/74ABT16646 for on-board bus interface applications.
