Part Number: IDT54FCT16841ET
Description: The FCT16841AT/BT/CT/ET and FCT162841AT/BT/CT/ET 20-bit transparent D-type latches are built using adv...
- Table of contents:
IDT54FCT16841ET
-
Suppliers
DataSheet
General Description
IDT54FCT16841ET General Description
The FCT16841AT/BT/CT/ET and FCT162841AT/BT/CT/ET 20-bit transparent D-type latches are built using advanced dual metal CMOS technology. These high-speed, low-power latches are ideal for temporary storage of data. They can be used for implementing memory address latches, I/O ports,and bus drivers. The Output Enable and Latch Enable controls are organized to operate each device as two 10-bit latches or one 20-bit latch. Flow-through organization of signal pins simplifies layout. All inputs are designed with hysteresis for improved noise margin.
The FCT16841AT/BT/CT/ET are ideally suited for driving high-capacitance loads and low-impedance backplanes. The output buffers are designed with power off disable capability to allow "live insertion" of boards when used as backplane drivers.The FCT162841AT/BT/CT/ET have balanced output drive with current limiting resistors. This offers low ground bounce,minimal undershoot, and controlled output fall timesreducing the need for external series terminating resistors. The FCT162841AT/BT/CT/ET are plug-in replacements for the FCT16841AT/BT/CT/ET and ABT16841 for on-board interface applications.
IDT54FCT16841ET Maximum Ratings
| Symbol | Rating |
Max |
Unit |
| VTERM | Terminal Voltage with Respect to GND |
0.5 to +7.0 |
V |
| VTERM | Terminal Voltage with Respect to GND |
0.5 to VCC +0.5 |
V |
| TSTG |
Storage Temperature |
65 to +150 |
°C |
| IOUT |
DC Output Current |
60 to +120 |
mA |
IDT54FCT16841ET Features
• Common features:
0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage 1A (max.)
ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40°C to +85°C
VCC = 5V ±10%
• Features for FCT16841AT/BT/CT/ET:
High drive outputs (-32mA IOH, 64mA IOL)
Power off disable outputs permit "live insertion"
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C
• Features for FCT162841AT/BT/CT/ET:
Balanced Output Drivers: ±24mA (commercial),±16mA (military)
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C
0.5 MICRON CMOS Technology
High-speed, low-power CMOS replacement for ABT functions
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage 1A (max.)
ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack
Extended commercial range of -40°C to +85°C
VCC = 5V ±10%
• Features for FCT16841AT/BT/CT/ET:
High drive outputs (-32mA IOH, 64mA IOL)
Power off disable outputs permit "live insertion"
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C
• Features for FCT162841AT/BT/CT/ET:
Balanced Output Drivers: ±24mA (commercial),±16mA (military)
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C

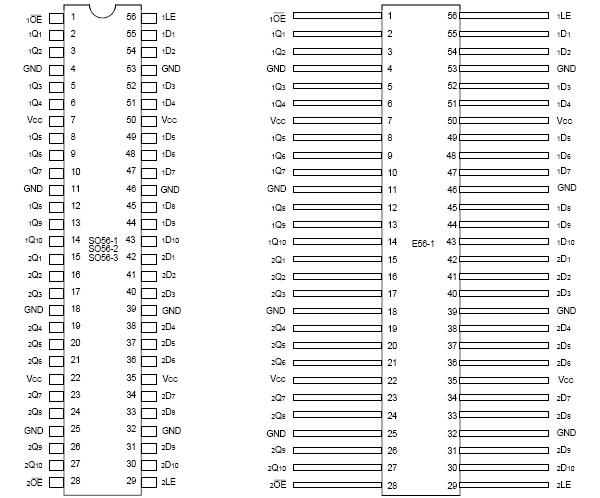

IDT54FCT16841ET Connection Diagram
IDT54FCT16841ET
