Part Number: IDT54FCT3574
Description: The FCT3574/A are 8-bit registers built using an advanced dual metal CMOS technology. These registers consist of ...
- Table of contents:
IDT54FCT3574
-
Suppliers
DataSheet
General Description
IDT54FCT3574 General Description
The FCT3574/A are 8-bit registers built using an advanced dual metal CMOS technology. These registers consist of eight D-type flip-flops with a buffered common clock and buffered 3-state output control. When the output (OE) input is LOW, the eight outputs are enabled. When theOE; input is HIGH, the outputs are in the high-impedance state.
Input data meeting the set-up and hold time requirements of the D inputs is transferred to the O outputs on the LOW-to- HIGH transition of the clock input.
IDT54FCT3574 Maximum Ratings
| Symbol | Rating | Commercial | Military |
Unit |
| VTERM(2) | Terminal Voltage with Respect to GND |
0.5 to +4.6 | 0.5 to +4.6 |
V |
| VTERM(3) | Terminal Voltage with Respect to GND |
0.5 to +7.0 | 0.5 to +7.0 |
V |
| VTERM(4) | Terminal Voltage with Respect to GND |
0.5 to VCC + 0.5 | 0.5 to VCC + 0.5 |
V |
| TA | Operating Temperature |
40 to +85 | 55 to +125 |
°C |
| TBIAS | Temperature Under Bias |
55 to +125 | 65 to +135 |
°C |
| TSTG | Storage Temperature |
55 to +125 | 65 to +150 |
°C |
| PT | Power Dissipation | 1.0 | 1.0 |
W |
| IOUT | DC Output Current |
60 to +60 | 60 to +60 |
mA |
IDT54FCT3574 Features
* 0.5 MICRON CMOS Technology
* ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
* 25 mil Center SSOP Packages
* Extended commercial range of -40°C to +85°C
* VCC = 3.3V ±0.3V, Normal Range or
VCC = 2.7V to 3.6V, Extended Range
* CMOS power levels (0.4W typ. static)
* Rail-to-Rail output swing for increased noise margin
* Military product compliant to MIL-STD-883, Class B
* ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
* 25 mil Center SSOP Packages
* Extended commercial range of -40°C to +85°C
* VCC = 3.3V ±0.3V, Normal Range or
VCC = 2.7V to 3.6V, Extended Range
* CMOS power levels (0.4W typ. static)
* Rail-to-Rail output swing for increased noise margin
* Military product compliant to MIL-STD-883, Class B

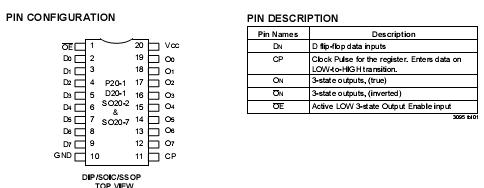

IDT54FCT3574 Connection Diagram
IDT54FCT3574ADB
PDF/DataSheet Download
- Datasheet: IDT54FCT3574ADB
- File Size: 84407 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
