Purchase IDT54FCT373T, In-stock IDT54FCT373T From SeekIC.
Part Number: IDT54FCT373T
Description: The FCT373T/FCT2373T, FCT533T and FCT573T/ FCT2573T are octal transparent latches built using an advan...
- Table of contents:
IDT54FCT373T
-
Suppliers
DataSheet
General Description
IDT54FCT373T General Description
The FCT373T/FCT2373T, FCT533T and FCT573T/ FCT2573T are octal transparent latches built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high- impedance state.
The FCT2373T and FCT2573T have balanced drive outputs with current limiting resistors. This offers low ground bounce, minimal undershoot and controlled output fall timesreducing the need for external series terminating resistors. The FCT2xxxT parts are plug-in replacements for FCTxxxT parts.
IDT54FCT373T Maximum Ratings
|
Symbol |
Rating |
Commercial |
Military |
Unit |
|
VTERM(2) |
Terminal Voltage with Respect to GND |
0.5 to +7.0 |
0.5 to +7.0 |
V |
|
VTERM(3) |
Terminal Voltage with Respect to GND |
0.5 to VCC +0.5 |
0.5 to VCC +0.5 |
V |
|
TA |
Operating Temperature |
0 to +70 |
55 to +125 |
°C |
|
TBIAS |
Temperature Under Bias |
55 to +125 |
65 to +135 |
°C |
|
TSTG |
Storage Temperature |
55 to +125 |
65 to +150 |
°C |
|
PT |
Power Dissipation |
0.5 |
0.5 |
W |
|
IOUT |
DC Output Current |
60 to +120 |
60 to +120 |
mA |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. No terminal voltage may exceed VCC by +0.5V unless otherwise noted.
2. Input and VCC terminals only.
3. Outputs and I/O terminals only.
IDT54FCT373T Features
• Common features:
Low input and output leakage £1mA (max.)
CMOS power levels
True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
Meets or exceeds JEDEC standard 18 specifications
Product available in Radiation Tolerant and Radiation Enhanced versions
Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages
• Features for FCT373T/FCT533T/FCT573T:
Std., A, C and D speed grades
High drive outputs (-15mA IOH, 48mA IOL)
Power off disable outputs permit "live insertion"
• Features for FCT2373T/FCT2573T:
Std., A and C speed grades
Resistor output (-15mA IOH, 12mA IOL Com.)
(-12mA IOH, 12mA IOL Mil.)
Reduced system switching noise
Low input and output leakage £1mA (max.)
CMOS power levels
True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
Meets or exceeds JEDEC standard 18 specifications
Product available in Radiation Tolerant and Radiation Enhanced versions
Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages
• Features for FCT373T/FCT533T/FCT573T:
Std., A, C and D speed grades
High drive outputs (-15mA IOH, 48mA IOL)
Power off disable outputs permit "live insertion"
• Features for FCT2373T/FCT2573T:
Std., A and C speed grades
Resistor output (-15mA IOH, 12mA IOL Com.)
(-12mA IOH, 12mA IOL Mil.)
Reduced system switching noise

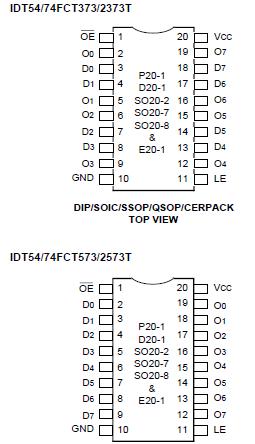

IDT54FCT373T Connection Diagram
IDT54FCT373T
