IDT54FCT841AT
-
Suppliers
DataSheet
General Description
IDT54FCT841AT General Description
The FCT8xxT series is built using an advanced dual metal CMOS technology.The FCT8xxT bus interface latches are designed to eliminate the extra packages required to buffer existing latches and provide extra data width for wider address/data paths or buses carrying parity. The FCT841T are buffered, 10-bit wide versions of the popular FCT373T function. They are ideal for use as an output port requiring high IOL/IOH.
All of the FCT8xxT high-performance interface family can drive large capacitive loads, while providing low-capacitance bus loading at both inputs and outputs. All inputs have clamp diodes to ground and all outputs are designed for low-capacitance bus loading in high-impedance state.
IDT54FCT841AT Maximum Ratings
| Symbol | Rating |
Commercial |
Military |
Unit |
| VTERM | Terminal Voltage with Respect to GND |
0.5 to +7.0 |
0.5 to +7.0 |
V |
| VTERM | Terminal Voltage with Respect to GND |
-0.5 to VCC +0.5 |
0.5 to VCC +0.5 |
V |
| TA | Operating Temperature |
0 to +70 |
55 to +125 |
°C |
| TBIAS | Temperature Under Bias |
55 to +125 |
65 to +135 |
°C |
| TSTG |
Storage Temperature |
55 to +125 |
65 to +150 |
°C |
| PT | Power Dissipation |
0.5 |
0.5 |
W |
| IOUT |
DC Output Current |
60 to +120 |
60 to +120 |
mA |
IDT54FCT841AT Features
• Common features:
Low input and output leakage 1A (max.)
CMOS power levels
True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
Meets or exceeds JEDEC standard 18 specifications
Product available in Radiation Tolerant and Radiation Enhanced versions
Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages
• Features for FCT841T:
A, B, C and D speed grades
High drive outputs (-15mA IOH, 48mA IOL)
Power off disable outputs permit "live insertion"
Low input and output leakage 1A (max.)
CMOS power levels
True TTL input and output compatibility
VOH = 3.3V (typ.)
VOL = 0.3V (typ.)
Meets or exceeds JEDEC standard 18 specifications
Product available in Radiation Tolerant and Radiation Enhanced versions
Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
Available in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages
• Features for FCT841T:
A, B, C and D speed grades
High drive outputs (-15mA IOH, 48mA IOL)
Power off disable outputs permit "live insertion"

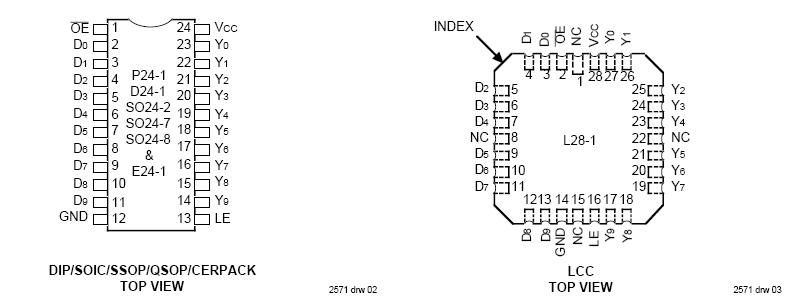

IDT54FCT841AT Connection Diagram
IDT54FCT841ATD
PDF/DataSheet Download
- Datasheet: IDT54FCT841ATD
- File Size: 141437 KB
- Manufacturer: IDT [Integrated Device Technology]
- Click here to Download
- ·IDT 79R3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79R3081E
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081
- IDT
- RISController?
- 914564 KB
- ·IDT 79RV3081E
- IDT
- RISController?
- 914564 KB
- ·IDT RC5000
- IDT
- MULTI-ISSUE 64-BIT MICROPROCESSOR
- 470729 KB
- ·IDT2305
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
- ·IDT2305-1DC
- IDT [Integrated Device Technology]
- 3.3V ZERO DELAY CLOCK BUFFER
- 135648 KB
IDT54FCT841AT Relative Products
IDT54FCT841A
The IDT54FCT841A series is built using an advanced dual metal CMOS technology.The IDT54FCT841A series bus interface latches are designed to eliminate the extra packages required to buffer existing latches and provide extra data width for wider address/data p...
IDT54FCT841
The IDT54FCT841 series is built using an advanced dual metal CMOS technology.The IDT54FCT841 series bus interface latches are designed to eliminate the extra packages required to buffer existing latches and provide extra data width for wider address/data pat...
IDT54FCT827DT
The IDT54FCT827DT is built using an advanced dual metal CMOS technology. The IDT54FCT827DT 10-bit bus drivers provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NAND-ed output enab...
IDT54FCT827CT
The IDT54FCT827CT is built using an advanced dual metal CMOS technology. The IDT54FCT827CT 10-bit bus drivers provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NAND-ed output enab...
IDT54FCT827BT
The IDT54FCT827BT is built using an advanced dual metal CMOS technology. The IDT54FCT827BT 10-bit bus drivers provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NAND-ed output enab...
IDT54FCT827AT
The IDT54FCT827AT is built using an advanced dual metal CMOS technology. The IDT54FCT827AT 10-bit bus drivers provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. The 10-bit buffers have NAND-ed output enab...
