General Description
IDT5993A General Description
The IDT5993A is a high fanout PLL based clock driver intended for high performance computing and data-communications applications. A key feature of the programmable skew is the ability of outputs to lead or lag the REF input signal. The IDT5993A has six programmable skew outputs and two zero skew outputs. Skew is controlled by 3-level input signals that may be hard-wired to appropriate HIGH-MID-LOW levels.
IDT5993A Maximum Ratings
| Symbol | Description |
Max |
Unit |
VI TSTG |
Supply Voltage to Ground DC Input Voltage Maximum Power Dissipation (TA = 85°C) Storage Temperature |
0.5 to +7 0.5 to +7 0.66 65 to +150 |
V V °C °C |
IDT5993A Features
• 3 pairs of programmable skew outputs
• Low skew: 200ps same pair, 250ps all outputs
• Selectable positive or negative edge synchronization:
Excellent for DSP applications
• Synchronous output enable
• Output frequency: 3.75MHz to 100MHz
• 2x, 4x, 1/2, and 1/4 outputs
• 5V with TTL outputs
• 3 skew grades:
IDT5993A-2: tSKEW0<250ps
IDT5993A-5: tSKEW0<500ps
IDT5993A-7: tSKEW0<750ps
• 3-level inputs for skew and PLL range control
• PLL bypass for DC testing
• External feedback, internal loop filter
• 46mA IOL high drive outputs
• Low Jitter: <200ps peak-to-peak
• Outputs drive 50Ω terminated lines
• Available in QSOP package
• Low skew: 200ps same pair, 250ps all outputs
• Selectable positive or negative edge synchronization:
Excellent for DSP applications
• Synchronous output enable
• Output frequency: 3.75MHz to 100MHz
• 2x, 4x, 1/2, and 1/4 outputs
• 5V with TTL outputs
• 3 skew grades:
IDT5993A-2: tSKEW0<250ps
IDT5993A-5: tSKEW0<500ps
IDT5993A-7: tSKEW0<750ps
• 3-level inputs for skew and PLL range control
• PLL bypass for DC testing
• External feedback, internal loop filter
• 46mA IOL high drive outputs
• Low Jitter: <200ps peak-to-peak
• Outputs drive 50Ω terminated lines
• Available in QSOP package

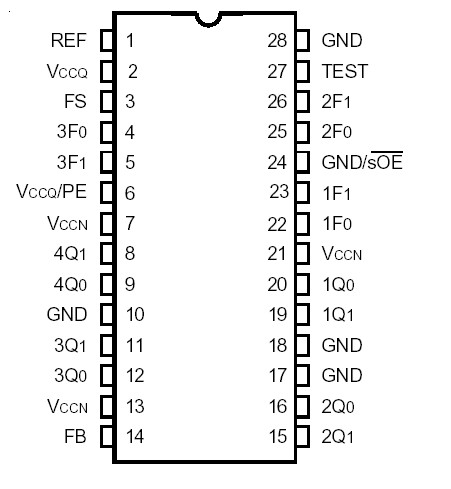

IDT5993A Connection Diagram
IDT5993A
