Part Number: IDT5T9050
Description: The IDT5T9050 2.5V single data rate (SDR) clock buffer is a single-ended input to five single-ended ou...
- Table of contents:
IDT5T9050
-
Suppliers
DataSheet
General Description
IDT5T9050 General Description
The IDT5T9050 2.5V single data rate (SDR) clock buffer is a single-ended input to five single-ended outputs buffer built on advanced metal CMOS technology. The SDR clock buffer fanout from a single input to five single-ended outputs reduces the loading on the preceding driver and provides an efficient clock distribution network. Multiple power and grounds reduce noise.
IDT5T9050 Maximum Ratings
| Symbol | Description |
Max |
Unit |
| VDD | Power Supply Voltage(2) |
0.5 to +3.6 |
V |
| VI | Input Voltage |
0.5 to +3.6 |
V |
| VO | Output Voltage(3) |
0.5 to VDD +0.5 |
V |
| TSTG | Storage Temperature |
65 to +165 |
°C |
| TJ | Junction Temperature |
150 |
°C |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT5T9050 Features
• Optimized for 2.5V LVTTL
• Guaranteed Low Skew < 25ps (max)
• Very low duty cycle distortion < 300 (max)
• High speed propagation delay < 1.8ns. (max)
• Up to 200MHz operation
• Very low CMOS power levels
• Hot insertable and over-voltage tolerant inputs
• 1:5 fanout buffer
• 2.5V VDD
• Available in TSSOP package
• Guaranteed Low Skew < 25ps (max)
• Very low duty cycle distortion < 300 (max)
• High speed propagation delay < 1.8ns. (max)
• Up to 200MHz operation
• Very low CMOS power levels
• Hot insertable and over-voltage tolerant inputs
• 1:5 fanout buffer
• 2.5V VDD
• Available in TSSOP package
IDT5T9050 Typical Application
• Clock and signal distribution

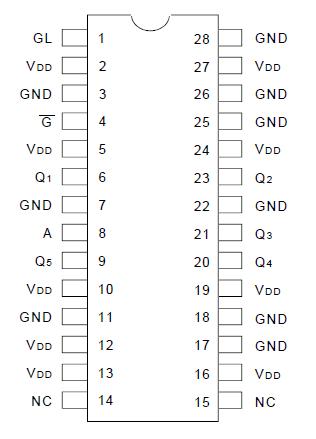

IDT5T9050 Connection Diagram
IDT5T9050
