General Description
IDT5V927 General Description
The IDT5V927 is a low-cost, low skew, low jitter, and high-performance clock synthesizer. It has been specially designed to interface with Gigabit Ethernet (125MHz), Fibre Channel (106.25MHz), and OC-3 (155.52MHz) applications. It can be programmed to provide output frequencies ranging from 50MHz to 160MHz, with input frequencies ranging from 6.25MHz to 80MHz.
The IDT5V927 includes an internal RC filter that provides excellent jitter characteristics and eliminates the need for external components. When using the optional crystal input, the chip accepts a 10 - 40MHz fundamental mode crystal with a maximum equivalent series resistance of 50.
IDT5V927 Maximum Ratings
| Symbol | Description |
Max |
Unit |
| VDD/VDDQ | Supply Voltage to Ground |
0.5 to +4.6 |
V |
| VI | Input Voltage |
0.5 to +4.6 |
V |
| VO | Output Voltage |
±50 |
V |
| TSTG | Storage Temperature |
65 to +150 |
°C |
| TJ | Junction Temperature |
150 |
°C |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IDT5V927 Features
• 3V to 3.6V operating voltage
• 50MHz to 160MHz output frequency range
• Input from fundamental crystal oscillator or external source
• Internal PLL feedback (loading feedback output relative to other outputs, adjusts propagation delay between REF inputs and outputs)
• Select inputs (S[1:0]) for FB divide selection (multiply ratio of 2, 3, 4, 4.25, 5, 6, 6.25, and 8)
• Low jitter
• PLL bypass for testing and power-down control (S1 = H, S0 = H, powers part down <500A)
• Available in TSSOP package
• 50MHz to 160MHz output frequency range
• Input from fundamental crystal oscillator or external source
• Internal PLL feedback (loading feedback output relative to other outputs, adjusts propagation delay between REF inputs and outputs)
• Select inputs (S[1:0]) for FB divide selection (multiply ratio of 2, 3, 4, 4.25, 5, 6, 6.25, and 8)
• Low jitter
• PLL bypass for testing and power-down control (S1 = H, S0 = H, powers part down <500A)
• Available in TSSOP package
IDT5V927 Typical Application
• Gigabit ethernet
• Router
• Network switches
• SAN
• Instrumentation
• Fibre channel
• Router
• Network switches
• SAN
• Instrumentation
• Fibre channel

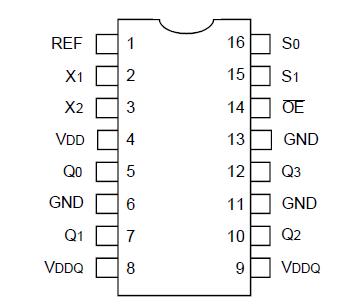

IDT5V927 Connection Diagram
IDT5V927
