IDT5V928

Features: • 3V to 3.6V operating voltage• 50MHz to 160MHz output frequency range• Input from fundamental crystal oscillator or external source• Internal PLL feedback (loading feedback output relative to other outputs, adjusts propagation delay between REF inputs and outputs...

product image

IDT5V928 Picture
See larger image
SeekIC No. : 004371896 Detail

IDT5V928: Features: • 3V to 3.6V operating voltage• 50MHz to 160MHz output frequency range• Input from fundamental crystal oscillator or external source• Internal PLL feedback (loading...

IDT5V928 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT5V928
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3V to 3.6V operating voltage
• 50MHz to 160MHz output frequency range
• Input from fundamental crystal oscillator or external source
• Internal PLL feedback (loading feedback output relative to other outputs, adjusts propagation delay between REF inputs and outputs)
• Select inputs (S[1:0]) for FB divide selection (multiply ratio of 2,
3, 4, 4.25, 5, 6, 6.25, and 8)
• Low jitter
• PLL bypass for testing and power-down control (S1 = H, S0 = H, powers part down <500A)
• Available in TSSOP package


Application

• Gigabit ethernet
• Router
• Network switches
• SAN
• Instrumentation
• Fibre channel

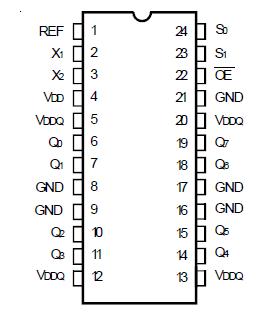

Pinout

Connection Diagram


Specifications

Symbol Description
Max
Unit
VDD/VDDQ Power Supply Voltage
0.5 to +4.6
V
VI Input Voltage
0.5 to +4.6
V
VO Output Voltage
±50
V
TSTG Storage Temperature
65 to +150
°C
TJ Junction Temperature
150
°C

NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The IDT5V928 is a low-cost, low skew, low jitter, and high-performance clock synthesizer. It has been specially designed to interface with Gigabit Ethernet (125MHz), Fibre CHannel (106.25MHz), and OC-3 (155.52MHz) applications. It can be programmed to provide output frequencies ranging from 50MHz to 160MHz, with input frequencies ranging from 6.25MHz to 80MHz.

The IDT5V928 includes an internal RC filter that provides excellent jitter characteristics and eliminates the need for external components. When using the optional crystal input, the chip accepts a 10 - 40MHz fundamental mode crystal with a maximum equivalent series resistance of 50.
