Product Details

Description



Features:

256K x 16 advanced high-speed CMOS Static RAM
JEDEC Center Power / GND pinout for reduced noise.
Equal access and cycle times
Commercial and Industrial: 10/12/15ns
One Chip Select plus one Output Enable pin
Bidirectional data inputs and outputs directly LVTTL-compatible
Low power consumption via chip deselect
Upper and Lower Byte Enable Pins
Single 3.3V power supply
Available in 44-pin, 400 mil plastic SOJ package and a 44-
   pin, 400 mil TSOP Type II package and a 48 ball grid array,
   9mm x 9mm package.


Pinout

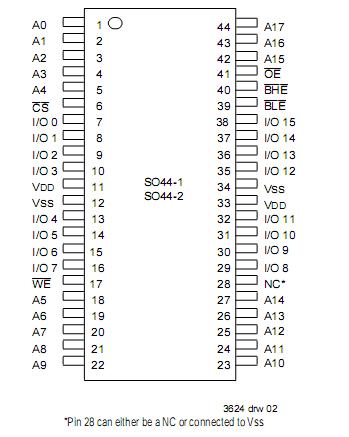

Connection Diagram


Specifications

Symbol

Rating

Value

Unit

VDD

Supply Voltage Relative to VSS

-0.5 to +4.6

V

VIN, VOUT

Terminal Voltage Relative toVSS

-0.5 to VDD+0.5

V

TBIAS

Temperature Under Bias

-55 to +125

oC

TSTG

Storage Temperature

-55 to +125

oC

PT

Power Dissipation

1

W

IOUT

DC Output Current

50

mA




Description

The IDT71V416L is a 4,194,304-bit high-speed Static RAM organized as 256K x 16. It is fabricated using IDT's high-perfomance, high-reliability CMOS technology. This state-of-the-art technology, combined with inno- vative circuit design techniques, provides a cost-effective solution for high- speed memory needs.

The IDT71V416L has an output enable pin which operates as fast as 5ns, with address access times as fast as 10ns. All bidirectional inputs and outputs of the IDT71V416 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

The IDT71V416L is packaged in a 44-pin, 400 mil Plastic SOJ and a 44-pin, 400 mil TSOP Type II package and a 48 ball grid array, 9mm x 9mm package.
