Part Number: ILX521A



MFG: SONY

Package Cooled: DIP



Description: The ILX521A is a rectangular reduction type CCD linear image sensor designed for image scanner sensor. A built-in timin...


Urgent Purchase

ILX521A General Description


The ILX521A is a rectangular reduction type CCD linear image sensor designed for image scanner sensor. A built-in timing generator and clock driver ensure single 5V power supply for easy use.

ILX521A Maximum Ratings

Supply voltage...............  VDD 6 V
Operating temperature.......10 to +60 °C
Storage temperature ........30 to +80 °C

ILX521A Features

• Number of effective pixels: 256 pixels
• Pixel size: 14µm×14µm (14µm pitch)
• Built-in timing generator and clock driver
• Built-in S/H circuit
• Maximum data rate: 2MHz
• Single 5V power supply
• Clear mold package (12-pin SDIP)

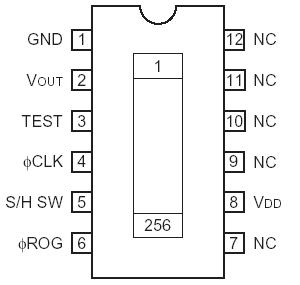

ILX521A Connection Diagram

ILX521A Connection Diagram
