Part Number: ILX524KA



MFG: SONY

Package Cooled: DIP22



Description: The ILX524KA is a reduction type CCD linear sensor developed for color image scanner. This sensor reads legal-size docu...


Urgent Purchase

ILX524KA General Description


The ILX524KA is a reduction type CCD linear sensor developed for color image scanner. This sensor reads legal-size documents at a density of 300 DPI.

ILX524KA Maximum Ratings

Supply voltage................ VDD 15 V
Operating temperature ........10 to +55 °C
Storage temperature .........30 to +80 °C

ILX524KA Features

• Number of effective pixels: 8100 pixels (2700 pixels×3)
• Pixel size: 8µm×8µm (8µm pitch)
• Distance between line: 64µm (8 Lines)
• Single-sided readout
• Ultra low lag / High sensitivity
• Single 12V power supply
• Input clock pulse: CMOS 5V drive
• Number of output 3 (R, G, B)
• Package: 22 pin Plastic-DIP (400 mil)

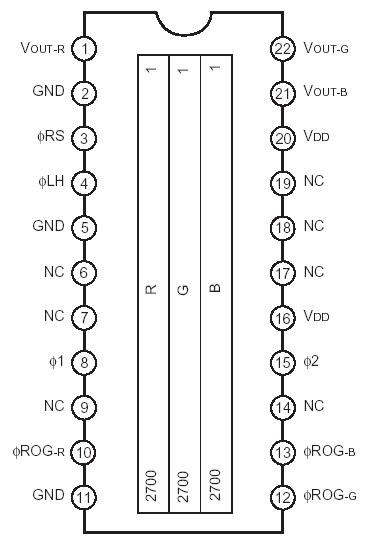

ILX524KA Connection Diagram
