INA105

Features: ·CMR 86dB min OVER TEMPERATURE·GAIN ERROR: 0.01% max·NONLINEARITY: 0.001% max·NO EXTERNAL ADJUSTMENTS REQUIRED·EASY TO USE·COMPLETE SOLUTION·HIGHLY VERSATILE·LOW COST· PLASTIC DIP, TO-99 HERMETIC METAL, AND SO-8 SOIC PACKAGESApplication·DIFFERENTIAL AMPLIFIER ·INSTRUMENTATION AMPLIFIER B...

product image

INA105 Picture
See larger image
SeekIC No. : 004375347 Detail

INA105: Features: ·CMR 86dB min OVER TEMPERATURE·GAIN ERROR: 0.01% max·NONLINEARITY: 0.001% max·NO EXTERNAL ADJUSTMENTS REQUIRED·EASY TO USE·COMPLETE SOLUTION·HIGHLY VERSATILE·LOW COST· PLASTIC DIP, TO-99 H...

INA105 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
INA105
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·CMR 86dB min OVER TEMPERATURE
·GAIN ERROR: 0.01% max
·NONLINEARITY: 0.001% max
·NO EXTERNAL ADJUSTMENTS REQUIRED
·EASY TO USE
·COMPLETE SOLUTION
·HIGHLY VERSATILE
·LOW COST
· PLASTIC DIP, TO-99 HERMETIC METAL, AND SO-8 SOIC PACKAGES


Application

·DIFFERENTIAL AMPLIFIER
·INSTRUMENTATION AMPLIFIER BUILDING BLOCK
·UNITY-GAIN INVERTING AMPLIFIER
·GAIN-OF-1/2 AMPLIFIER
·NONINVERTING GAIN-OF-2 AMPLIFIER
·AVERAGE VALUE AMPLIFIER
·ABSOLUTE VALUE AMPLIFIER
·SUMMING AMPLIFIER
·SYNCHRONOUS DEMODULATOR
·CURRENT RECEIVER WITH COMPLIANCE TO RAILS
·4mA TO 20mA TRANSMITTER
·VOLTAGE-CONTROLLED CURRENT SOURCE
·ALL-PASS FILTERS


Pinout

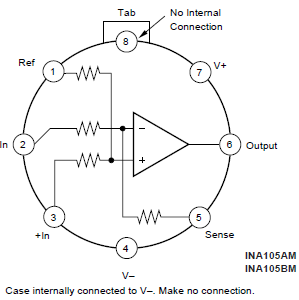

Connection Diagram


Specifications

Supply ................................................................................................ ±18V
Input Voltage Range ............................................................................ ±VS
Operating Temperature Range: M .................................. 55 to +125
                                                    P, U ................................40 to +85
Storage Temperature Range: M ..................................... 65 to +150
                                               P, U ................................. 40 to +125
Lead Temperature (soldering, 10s) M, P ....................................... +300
Wave Soldering (3s, max) U .......................................................... +260
Output Short Circuit to Common .............................................. Continuous


Description

The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision op amp and on-chip metal film resistors. The resistors are laser trimmed for accurate gain and high common-mode rejection.

Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature.

The differential amplifier is the foundation of many commonly used circuits. The INA105 provides this precision circuit function without using an expensive precision resistor network. The INA105 is available in 8-pin plastic DIP, SO-8 surface-mount and TO-99 metal packages.
