Part Number: IR2159(S)
Description: Description: The IR2159/IR21591 are complete dimming ballast controllers and 600V half-bridge drivers ...
- Table of contents:
IR2159(S)
-
Suppliers
DataSheet
General Description
IR2159(S) General Description
Description: The IR2159/IR21591 are complete dimming ballast controllers and 600V half-bridge drivers all in one IC. The architecture includes phase control for transformer- less lamp power sensing and regulation which minimizes changes needed to adapt non-dimming ballasts for dimming. Externally programmable features such as preheat time and current, ignition-to-dim time, and a complete dimming interface with minimum and maximum settings provide a high degree of flexibility for the ballast design engineer. Protection from failure of a lamp to strike, filament failures, thermal overload, or lamp failure during normal operation, as well as an automatic restart function, have been included in the design. The heart of this control IC is a voltagecontrolled oscillator with externally programmable minimum frequency. The IR2159/ IR21591 are available in both 16 pin DIP and 16 pin narrow body SOIC packages.
IR2159(S) Maximum Ratings
|
Symbol |
Definition |
Min. |
Max. |
Units | |
|
VB |
High side floating supply voltage |
-0.3 |
625 |
V | |
|
VS |
High side floating supply offset voltage |
VB - 25 |
VB + 25 | ||
|
VHO |
High side floating output voltage |
VS - 0.3 |
VB + 0.3 | ||
|
VLO |
Low side output voltage |
-0.3 |
VCC + 0.3 | ||
|
IOMAX |
Maximum allowable output current (either output) due to external power transistor miller effect |
-500 |
500 |
mA | |
|
VVCO |
Voltage controlled oscillator input voltage |
-0.3 |
6.0 |
v | |
|
ICPH |
CPH current |
-5 |
5 |
mA | |
|
VIPH |
IPH voltage |
-0.3 |
5.5 |
V | |
|
VDIM |
Dimming control pin input voltage |
-0.3 |
5.5 | ||
|
VMAX |
Maximum lamp power setting pin input voltage |
-0.3 |
5.5 | ||
|
VMIN |
Minimum lamp power setting pin input voltage |
-0.3 |
5.5 | ||
|
VCS |
Current sense input voltage |
-0.3 |
5.5 | ||
|
ISD |
Shutdown pin current |
-5 |
2 |
mA | |
|
ICC |
Supply current (note 1) |
25 | |||
|
dV/dt |
Allowable offset voltage slew rate |
-50 |
50 |
V/ns | |
|
PD |
Package power dissipation @ TA +25°C |
(16 pin DIP) |
1.60 |
mA | |
|
PD = (TJMAX-TA)/RthJA |
(16 pin SOIC) |
1.25 | |||
|
RthJA |
Thermal resistance, junction to ambient |
(16 pin DIP) |
75 |
oC/W | |
|
(16 pin SOIC) |
115 | ||||
|
TJ |
-55 |
150 |
|||
|
Ts |
-55 |
150 |
oC | ||
|
TL |
300 | ||||
IR2159(S) Features
• Ballast control and half-bridge driver in one IC
• Transformer-less lamp power sensing
• Closed-loop lamp power control
• Closed-loop preheat current control
• Programmable preheat time
• Programmable preheat current
• Programmable ignition-to-dim time
• 0.5 to 5VDC dimming control input
• Min and max lamp power adjustments
• Programmable minimum frequency
• Internal current sense blanking
• Full lamp fault protection
• Brown-out protection
• Automatic restart
• Micro-power startup
• Zener clamped Vcc
• Over-temperature protection
• 16-pin DIP and SOIC package types
• Transformer-less lamp power sensing
• Closed-loop lamp power control
• Closed-loop preheat current control
• Programmable preheat time
• Programmable preheat current
• Programmable ignition-to-dim time
• 0.5 to 5VDC dimming control input
• Min and max lamp power adjustments
• Programmable minimum frequency
• Internal current sense blanking
• Full lamp fault protection
• Brown-out protection
• Automatic restart
• Micro-power startup
• Zener clamped Vcc
• Over-temperature protection
• 16-pin DIP and SOIC package types
IR2159(S) Connection Diagram
IR2159(S)
PDF/DataSheet Download
- Datasheet: IR2159(S)
- File Size: 267606 KB
- Manufacturer:
- Click here to Download
- ·IR2010
- IRF [International Rectifier]
- HIGH AND LOW SIDE DRIVER
- 232500 KB
- ·IR2010 (S)
- HIGH AND LOW SIDE DRIVER
- 186559 KB
- ·IR2010S
- IRF [International Rectifier]
- HIGH AND LOW SIDE DRIVER
- 232500 KB
- ·IR2010SPBF
- IRF [International Rectifier]
- HIGH AND LOW SIDE DRIVER
- 232500 KB
- ·IR2011
- IRF [International Rectifier]
- HIGH AND LOW SIDE DRIVER
- 146562 KB
- ·IR2011S
- IRF [International Rectifier]
- HIGH AND LOW SIDE DRIVER
- 146562 KB
- ·IR2011SPbF
- IRF [International Rectifier]
- HIGH AND LOW SIDE DRIVER
- 146562 KB
- ·IR20153S
- IRF [International Rectifier]
- HIGH SIDE DRIVER WITH RECHARGE
- 225463 KB
IR2159(S) Relative Products
IR2159
IC BALLAST CONTROL DIM 16-DIP
IR21571STRPBF
IC BALLAST CONTROL INTEG 16-SOIC
IR21571STR
IC BALLAST CONTROL INTEG 16-SOIC

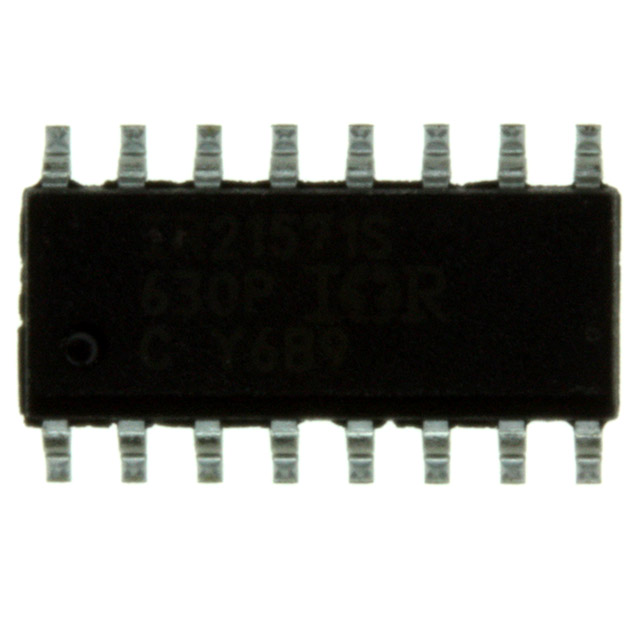

IR21571SPBF
IC BALLAST CONTROL INTEG 16-SOIC
IR21571S
The IR21571S is a fully integrated, fully protected 600V ballast control IC designed to drive virtually all types of rapid start fluorescent lamp ballasts. Externally programmable features such as preheat time & frequency, ignition ramp characteristics, ...

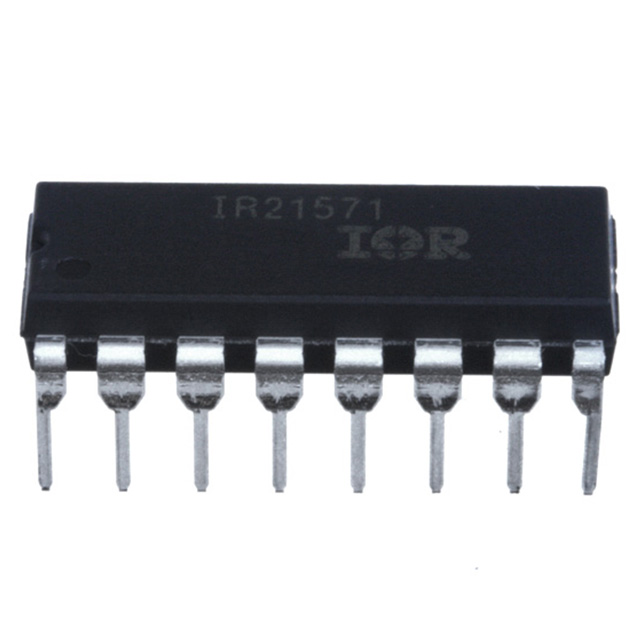

IR21571PBF
