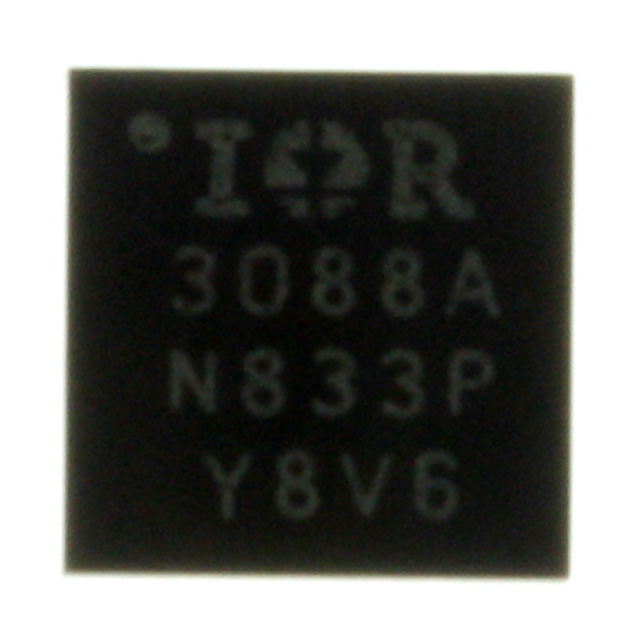

Part Number: IR3088APbF
Description: The IR3088APbF Phase IC combined with an IR XPhaseTM Control IC provides a full featured and flexible ...
- Table of contents:
IR3088APbF
-
Suppliers
DataSheet
General Description
IR3088APbF General Description
The IR3088APbF Phase IC combined with an IR XPhaseTM Control IC provides a full featured and flexible way to implement power solutions for the latest high performance CPUs and ASICs. The "Control" IC provides overall system control and interfaces with any number of "Phase" ICs which each drive and monitor a single phase of a multiphase converter. The XPhaseTM architecture results in a power supply that is smaller, less expensive, and easier to design while providing higher efficiency than conventional approaches.
IR3088APbF Maximum Ratings
Operating Junction Temperature..................150
Storage Temperature Range........................-65 to 150
ESD Rating...................................................HBM Class 1C JEDEC standard
IR3088APbF Features
• 2.5A Average Gate Drive Current
• Loss-Less Inductor Current Sense
• Internal Inductor DCR Temperature Compensation
• Programmable Phase Delay
• Programmable Feed-Forward Voltage Mode PWM Ramp
• Sub 100ns Minimum Pulse Width supports 1MHz per-phase operation
• Current Sense Amplifier drives a single wire Average Current Share Bus
• Current Share Amplifier reduces PWM Ramp slope to ensure sharing between phases
• Body BrakingTM disables Synchronous MOSFET for improved transient response and prevents negative output voltage at converter turn-off
• Phase Fault Detection
• Programmable Phase Over-Temperature Detection
• Control FET driver's 25V input voltage capability simplifies boot-strap supply design
• Small thermally enhanced 20L MLPQ package
IR3088APbF Typical Application
The IR3088APbF is intended for the following application conditions;
• Excessive impedance between converter and load
• Output voltage exceeding the control IC reference/VID voltage is desired
