Part Number: IRF7316QPbF









Description: Specifically designed for Automotive applications, these HEXFET® Power MOSFET's in a Du...


Urgent Purchase

IRF7316QPbF General Description


Specifically designed for Automotive applications, these HEXFET® Power MOSFET's in a Dual SO-8 package utilize the lastest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of these Automotive qualified HEXFET Power MOSFET's are a 150 junction operating temperature, fast switching speed and improved repetitive avalanche rating. These benefits combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.

The efficient SO-8 package provides enhanced thermal characteristics and dual MOSFET die capability making it ideal in a variety of power applications. This dual, surface mount SO-8 can dramatically reduce board space and is also available in Tape & Reel.

IRF7316QPbF Maximum Ratings

Characteristic Symbol Value Units
Drain-source voltage VDS ?20 V
Gate-source voltage VGS ±12 V
Continuous Drain Current TA=25 ID -4.9 A
TA=70 -3.9
Pulsed Drain Current IDM -30
Continuous Source Current (Diode Conduction) IS -2.5

Maximum Power Dissipation

TA=25 PD 0.58 W
TA=70 0.36
Single-pulse avalanche energy EAS 6.5 mJ
Avalanche current IAR -5 A
Repetitive Avalanche Energy
 EAR 0.20 mJ
Peak Diode Recovery dV/dt dV/dt -5.0 V/ns
Junction and Storage Temperature Range TJ, TSTG - 55 to +150

IRF7316QPbF Features

` Advanced Process Technology
` Ultra Low On-Resistance
` Dual P- Channel MOSFET
` Surface Mount
` Available in Tape & Reel
` 150 Operating Temperature
` Automotive [Q101] Qualified
` Lead-Free

IRF7316QPbF datasheet

IRF034
PDF/DataSheet Download

Find IRF7316QPbF Suppliers

  • ·IRF044
  • SEME-LAB [Seme LAB]
  • N-CHANNEL POWER MOSFET
  • 22513 KB
  • IRF044 Datasheet Download
  • ·IRF044SMD
  • SEME-LAB [Seme LAB]
  • N-CHANNEL POWER MOSFET
  • 21905 KB
  • IRF044SMD Datasheet Download
  • ·IRF054
  • IRF [International Rectifier]
  • REPETITIVE AVALANCHE AND dv/dt RATED HEXFET TRANSISTORS THRU-HOLE (TO-204AA/AE)
  • 149688 KB
  • IRF054 Datasheet Download
  • ·IRF054SMD
  • SEME-LAB [Seme LAB]
  • N-CHANNEL POWER MOSFET
  • 23141 KB
  • IRF054SMD Datasheet Download
  • ·IRF100
  • ETC [ETC]
  • 50W to 500W HIGH POWER WIRE WOUND RESISTORS FLAT SHAPED ALUMINUM HOUSED
  • 86902 KB
  • IRF100 Datasheet Download
  • ·IRF101
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel Power MOSFETs, 27 A, 60-100V
  • 149859 KB
  • IRF101 Datasheet Download
  • ·IRF1010E
  • IRF [International Rectifier]
  • Power MOSFET(Vdss=60V,Rds(on)=12mohm,Id=84A
  • 200209 KB
  • IRF1010E Datasheet Download
  • ·IRF1010EL
  • IRF [International Rectifier]
  • Power MOSFET(Vdss=60V, Rds(on)=12mohm, Id=84A)
  • 126916 KB
  • IRF1010EL Datasheet Download

Related Part Number

IRF7316QPbF Relative Products

  • IRF7316PBF

    IRF7316PBF

    MOSFET 2P-CH 30V 4.9A 8-SOIC

  • IRF7316

    IRF7316

    The IRF7316 is HEXFET@ power MOSFET.The SO-8 has been modified through a customized leadframe for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of powerapplications. With these improvements, multiple devices can be...

  • IRF7314TRPBF

    IRF7314TRPBF

    MOSFET 2P-CH 20V 5.3A 8-SOIC

  • IRF7314TR

    IRF7314TR

    MOSFET 2P-CH 20V 5.3A 8-SOIC

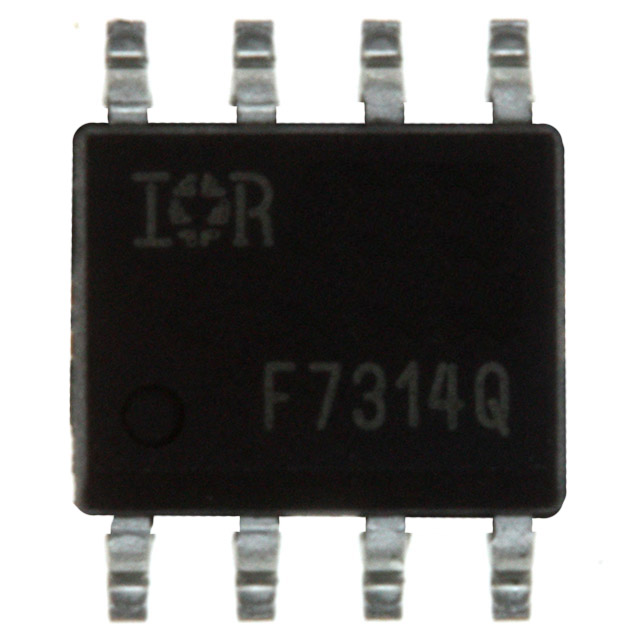

  • IRF7314QTRPBF
