IRG4BC30W

IGBT WARP 600V 23A TO-220AB

product image

IRG4BC30W Picture
See larger image
SeekIC No. : 003434219 Detail

IRG4BC30W: IGBT WARP 600V 23A TO-220AB

IRG4BC30W Data Sheet

floor Price/Ceiling Price

US $ .93~.93 / Piece | Get Latest Price
Part Number:
IRG4BC30W
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~250
  • Unit Price
  • $.93
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: International Rectifier
IGBT Type: - Frequency : 0.5 GHz to 2 GHz
Voltage - Collector Emitter Breakdown (Max): 600V Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 12A
Current - Collector (Ic) (Max): 23A Power - Max: 100W
Input Type: Standard Mounting Type: Through Hole
Package / Case: TO-220-3 Supplier Device Package: TO-220AB

Description

Series: -
Manufacturer: International Rectifier
IGBT Type: -
Voltage - Collector Emitter Breakdown (Max): 600V
Input Type: Standard
Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 12A
Current - Collector (Ic) (Max): 23A
Power - Max: 100W
Mounting Type: Through Hole
Packaging: Tube
Package / Case: TO-220-3
Supplier Device Package: TO-220AB


Features:

* Designed expressly for Switch-Mode Power
  Supply and PFC (power factor correction)
  applications
* Industry-benchmark switching losses improve
  efficiency of all power supply topologies
* 50% reduction of Eoff parameter
* Low IGBT conduction losses
* Latest-generation IGBT design and construction offers
  tighter parameters distribution,  exceptional reliability

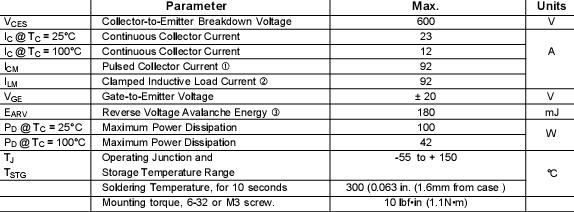

Specifications

Connection Diagram
