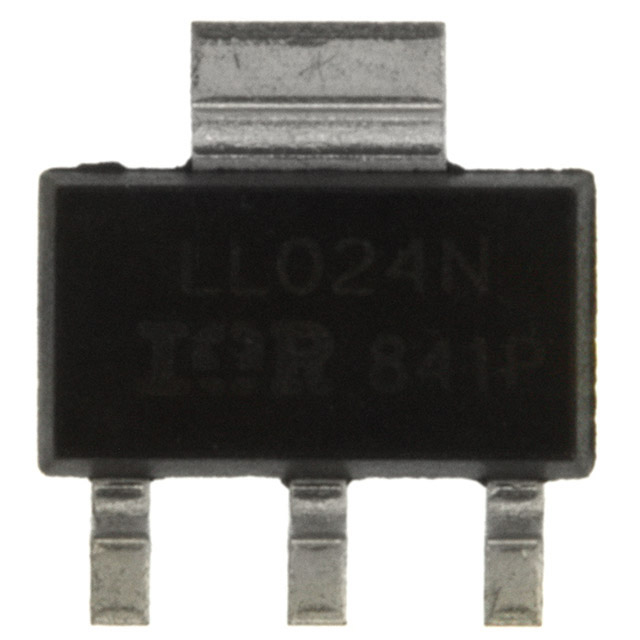

IRLL024ZTRPBF Product Image

IRL Series Datasheet download

Five Points

Part Number: IRLL024ZTRPBF

Category: Discrete Semiconductor Products

MFG: International Rectifier





Descriptions: MOSFET N-CH 55V 5A SOT223

Price Break

2500

Unit Price

.22500

Extended Price

562.50

(All prices are in USD) Prices for reference only
Urgent Purchase

IRLL024ZTRPBF General Description

MOSFET N-CH 55V 5A SOT223

IRLL024ZTRPBF Parameters

Technical/Catalog InformationIRLL024ZTRPBF
VendorInternational Rectifier
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)55V
Current - Continuous Drain (Id) @ 25° C5A
Rds On (Max) @ Id, Vgs60 mOhm @ 3A, 10V
Input Capacitance (Ciss) @ Vds 380pF @ 25V
Power - Max1W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs11nC @ 5V
Package / CaseSOT-223, SC-73, TO-261 (3 Leads + Tab)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
