Product Details

Description



Features:

• TTL compatible inputs and outputs; tristate I/O
• Refresh Interval:
- 1,024 cycles/16 ms
• Refresh Mode:
- RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply: 3.3V ± 10%
• Byte Write and Byte Read operation via two CAS
• Extended Temperature Range: -30 to +85
• Industrial Temperature Range: -40 to +85
• Lead-free available

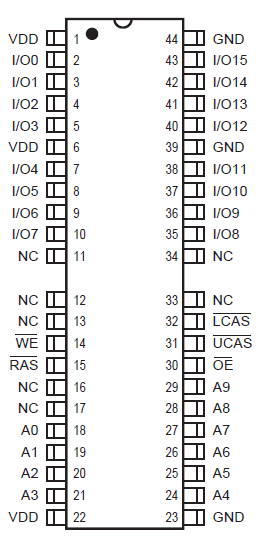

Pinout

Connection Diagram


Specifications

Symbol
Parameters
Rating
Unit
VT
 Voltage on Any Pin Relative to GND 3.3V
0.5 to +4.6
V
VDD
 Supply Voltage 3.3V
0.5 to +4.6
V
IOUT
 Output Current
50
mA
PD
 Power Dissipation
1
W
TA
 Commercial Operation Temperature
Extended Temperature
Industrial Temperature
0 to +70
30 to +85
40 to +85


TSTG
 Storage Temperature
55 to +125

Note:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The ISSI IS41LV16105B is 1,048,576 x 16-bit high-performance CMOS Dynamic Random Access Memories. Fast Page Mode allows 1,024 random accesses within a single row with access cycle time as short as 20 ns per 16-bit word. The Byte Write control, of upper and lower byte, makes the IS41LV16105B ideal for use in 16-, 32-bit wide data bus systems.

These features make the IS41LV16105B ideally suited for highbandwidth graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IS41LV16105B is packaged in a 42-pin 400-mil SOJ and 400-mil 44- (50-) pin TSOP (Type II).
