Part Number: IS41LV16257









Description: The ISSI IS41C16257 and the IS41LV16257 are 262,144 x 16-bit high-performance CMOS Dynamic Random Access Memories. Fast...


Urgent Purchase

IS41LV16257 General Description


The ISSI IS41C16257 and the IS41LV16257 are 262,144 x 16-bit high-performance CMOS Dynamic Random Access Memories. Fast Page Mode allows 512 random accesses within a single row with access cycle time as short as 12 ns per 16-bit word. The Byte Write control, of upper and lower byte, makes these devices ideal for use in 16-and 32-bit wide data bus systems.

These features make the IS41C16257 and the IS41LV16257 ideally suited for high band-width graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IS41C16257 and the IS41LV16257 are packaged in a 40-pin, 400-mil SOJ and TSOP (Type II).

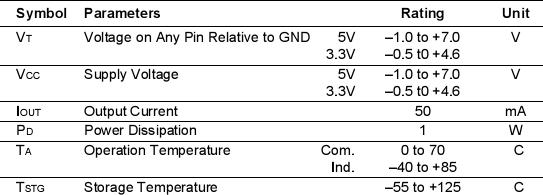

IS41LV16257 Maximum Ratings

IS41LV16257 Features

* Fast access and cycle time
* TTL compatible inputs and outputs
* Refresh Interval: 512 cycles/8 ms
* Refresh Mode: RAS-Only, CAS-before- RAS(CBR),and Hidden
* JEDEC standard pinout
* Single power supply:
   --  5V   10% (IS41C16257)
   --  3.3V   10% (IS41LV16257)
* Byte Write and Byte Read operation via two
* Industrial temperature available

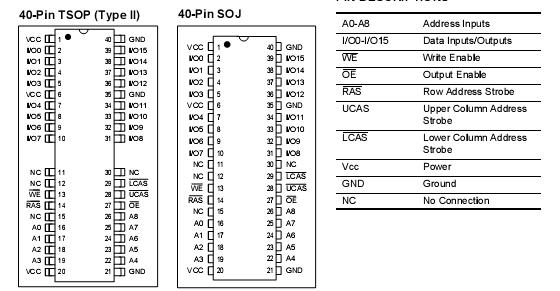

IS41LV16257 Connection Diagram

IS41LV16257 Connection Diagram

IS41LV16257 datasheet

IS41LV16257
PDF/DataSheet Download

  • Datasheet: IS41LV16257
  • File Size: 164320 KB
  • Manufacturer: ISSI [Integrated Silicon Solution, Inc]
  • Click here to Download
