Part Number: IS41LV4100
Description: The ISSI IS41C4100 and IS41LV4100 are 1,048,576 x 4-bit high-performance CMOS Dynamic Random Access Me...
- Table of contents:
IS41LV4100
-
Suppliers
DataSheet
General Description
IS41LV4100 General Description
The ISSI IS41C4100 and IS41LV4100 are 1,048,576 x 4-bit high-performance CMOS Dynamic Random Access Memory. Both products offer accelerated cycle access EDO Page Mode. EDO Page Mode allows 512 random accesses within a single row with access cycle time as short as 10ns per 4-bit word.
These features make the IS41C4100 and IS41LV4100 ideally suited for high band-width graphics, digital signal processing, high-performance computing systems, and peripheral applications.
The IS41C4100 and IS41LV4100 are available in a 20-pin, 300-mil SOJ package.
IS41LV4100 Maximum Ratings
| Symbol | Parameters |
Rating |
Unit |
| VT | Voltage on Any Pin Relative to GND 5V 3.3V |
1.0 to +7.0 0.5 to +4.6 |
V |
| VCC | Supply Voltage 5V 3.3V |
1.0 to +7.0 0.5 to +4.6 |
V |
| IOUT | Output Current |
50 |
mA |
| PD | Power Dissipation |
1 |
W |
| TA | Commercial Operation Temperature Industrial Operationg Temperature |
0 to +70 40 to +85 |
|
| TSTG | Storage Temperature |
55 to +125 |
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
IS41LV4100 Features
• TTL compatible inputs and outputs
• Refresh Interval: 1024 cycles/16 ms
• Refresh Mode : RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply
5V ± 10% (IS41C4100)
3.3V ± 10% (IS41LV4100)
• Industrail Temperature Range -40 to 85
• Refresh Interval: 1024 cycles/16 ms
• Refresh Mode : RAS-Only, CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply
5V ± 10% (IS41C4100)
3.3V ± 10% (IS41LV4100)
• Industrail Temperature Range -40 to 85

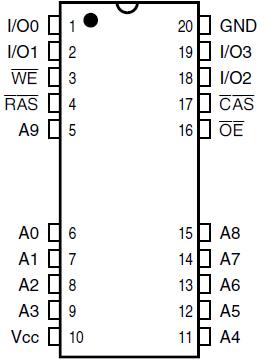

IS41LV4100 Connection Diagram
IS41LV4100
