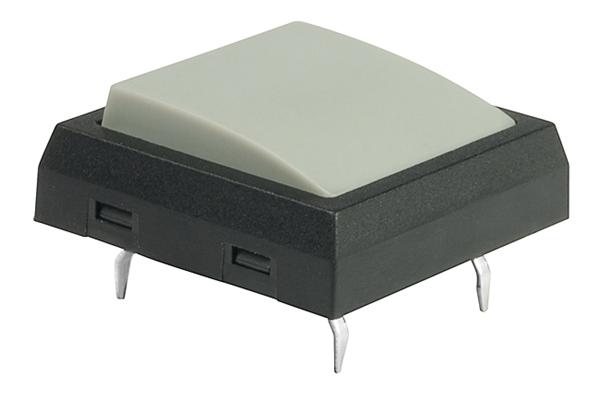

Tactile & Jog Switches .697 D GRAY KEYPAD
JF15SP4H: Tactile & Jog Switches .697 D GRAY KEYPAD
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
| Operating Force : | 2 N | Actuator : | Square |
| Current Rating : | 50 mA | Voltage Rating DC : | 24 V |
| Ground Terminal : | No | Contact Form : | SPST |
| Switch Function : | OFF - (ON) | Mounting Style : | Through Hole |
| Mounting Direction : | Straight | Stem Height : | 5.7 mm |
| Illumination : | Not Illuminated |
| Technical/Catalog Information | JF15SP4H |
| Vendor | NKK Switches of America Inc |
| Category | Switches |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Mounting Type | Through Hole |
| Operating Force | 200gf |
| Orientation | Vertical |
| Outline | 17.70mm x 17.70mm |
| Switch Function | Off-Mom |
| Illumination | Non-Illuminated |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | JF15SP4H JF15SP4H |
