Purchase K4S640832F, In-stock K4S640832F From SeekIC.
Part Number: K4S640832F
Description: The K4S640832F is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 wo...
- Table of contents:
K4S640832F
-
Suppliers
DataSheet
General Description
K4S640832F General Description
The K4S640832F is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 8 bits,fabricated with SAMSUNGs high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
K4S640832F Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
|
Voltage on any pin relative to Vss |
VIN, VOUT |
-1.0 ~ 4.6 |
V |
|
Voltage on VDD supply relative to Vss |
VDD, VDDQ |
-1.0 ~ 4.6 |
V |
|
Storage temperature |
TSTG |
-55 ~ +150 |
°C |
|
Power dissipation |
PD |
1 |
W |
|
Short circuit current |
IOS |
50 |
mA |
K4S640832F Features
• JEDEC standard 3.3V power supply
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock
• Burst read single-bit write operation
• DQM for masking
• Auto & self refresh
• 64ms refresh period (4K Cycle)
• LVTTL compatible with multiplexed address
• Four banks operation
• MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4, 8 & Full page)
-. Burst type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock
• Burst read single-bit write operation
• DQM for masking
• Auto & self refresh
• 64ms refresh period (4K Cycle)

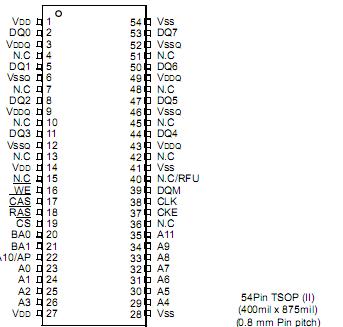

K4S640832F Connection Diagram
K4S640832F
PDF/DataSheet Download
- Datasheet: K4S640832F
- File Size: 124794 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
