Part Number: K6T1008U2C
Description: The K6T1008V2C and K6T1008U2C families are fabricated by SAMSUNG¢s advanced CMOS process technolo...
- Table of contents:
K6T1008U2C
-
Suppliers
DataSheet
General Description
K6T1008U2C General Description
The K6T1008V2C and K6T1008U2C families are fabricated by SAMSUNG¢s advanced CMOS process technology. The families support various operating temperature ranges and have various package types for user flexibility of system design. The families also supports low data retention voltage for battery back-up operation with low data retention current.
K6T1008U2C Maximum Ratings
| PARAMETER | SYMBOL | Ratings | Unit | Remark |
| Voltage on Any Pin Relative to Vss | VIN,OUT | -0.5 to VCC+0.5 | V | |
| Voltage on Vcc Supply Relative to Vss | VCC | -0.3 to 4.6 | V | |
| Power Dissipation | PD | 1.0 | W | |
| Storage Temperature | TSTG | -65 to 150 | °C | |
| Operating Temperature | IA | 0 to 70 | °C | K6T1008V2C-B/K6T1008U2C-B |
| -25 to 85 | K6T1008V2C-D/K6T1008U2C-D | |||
| -40 to 85 | K6T1008V2C-F/K6T1008U2C-F |
K6T1008U2C Features
· Process Technology: 0.4mm CMOS
· Organization: 128K x8
· Power Supply Voltage:
K6T1008V2C family: 3.0~3.6V
K6T1008U2C family: 2.7~3.3V
· Low Data Retention Voltage: 2V(Min)
· Three state output and TTL Compatible
· Package Type: 32-SOP-525, 32-TSOP1-0820F/R,
32-TSOP1-0813.4F/R
· Organization: 128K x8
· Power Supply Voltage:
K6T1008V2C family: 3.0~3.6V
K6T1008U2C family: 2.7~3.3V
· Low Data Retention Voltage: 2V(Min)
· Three state output and TTL Compatible
· Package Type: 32-SOP-525, 32-TSOP1-0820F/R,
32-TSOP1-0813.4F/R

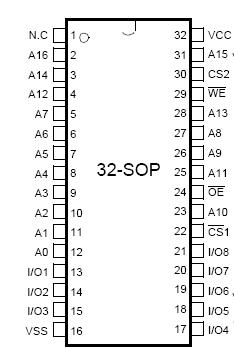

K6T1008U2C Connection Diagram
