Part Number: KA9258CD









Description: The KA9258D is a monolithic integrated circuit, suitable for 4-CH motor driver which drives tracking actuator, focus ac...


Urgent Purchase

KA9258CD General Description


The KA9258D is a monolithic integrated circuit, suitable for 4-CH motor driver which drives tracking actuator, focus actuator, sled motor and spindle motor of compack disk player system.

KA9258CD Maximum Ratings

Characteristics Symbol Rating Unit
Maximum supply voltage

Power dissipation

Operating temperature

Storage temperature

Maximum current output		 VCC MAX

PD

TOPR

TSTG

IOMAX		 15

1.7note

−25 ~ +75

−55 ~ +150

1		 V

W

°C

°C

A
Note:
1. When mounted on 76mm × 114mm × 1.57mm PCB (Phenolic resin material).
2. Power dissipation reduces 13.6mW / °C for using above Ta=25°C
3. Do not exceed Pd and SOA.

KA9258CD Features

• 4-CH Balanced Transformerless(BTL) Driver
• Output Gain Adjustable
• Built in OP-Amplifier
• Built in Mute Function
• Built in Thermal Shutdown Circuit (TSD)
• Operating Range 6 ~ 13.2V

KA9258CD Typical Application

• Compact Disk Player (CDP)
• Video Compact Disk Player (VCD)
• Automotive Compact Disk Player
• Other Compact Disk Media

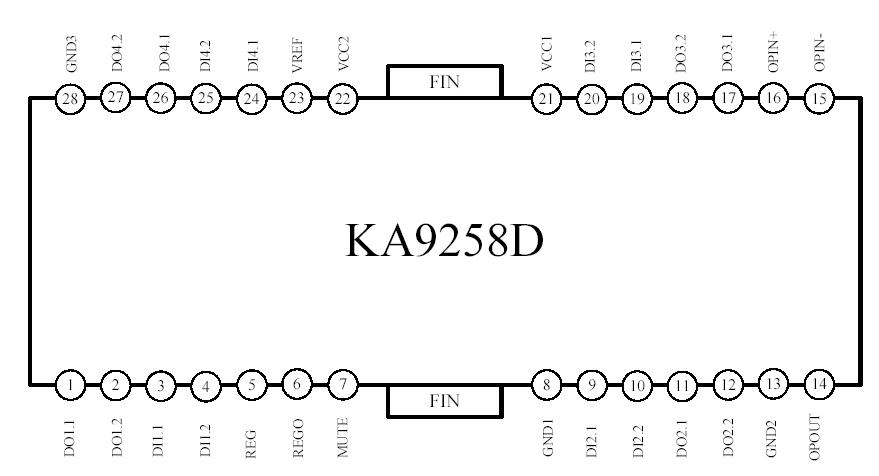

KA9258CD Connection Diagram

KA9258CD Connection Diagram

KA9258CD datasheet

KA9258CD
PDF/DataSheet Download

  • Datasheet: KA9258CD
  • File Size: 620687 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
